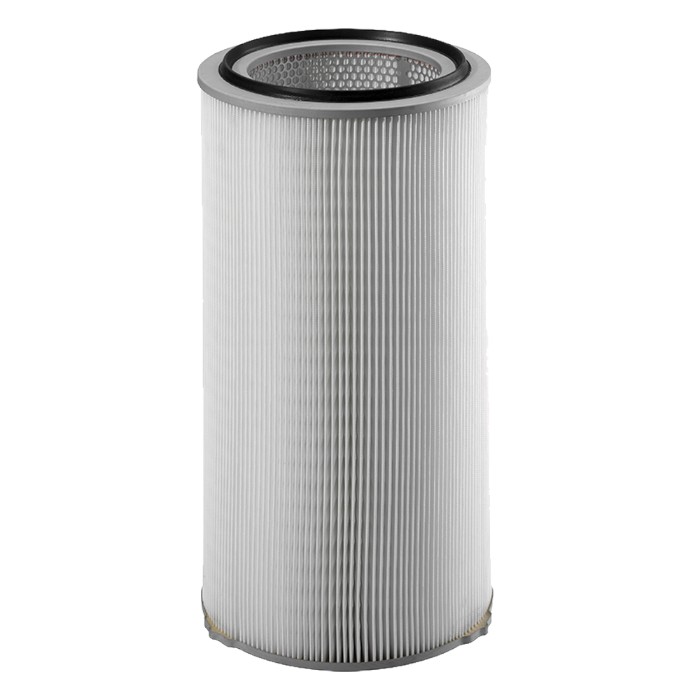

Filtration Group Dust Filter Element 852 908 TI 2011-7.5 NOK
Cylindrical Dust Filter Element
Filter media: Polyester nonwoven fabric with stainless steel fibers and a PTFE membrane, electrically conductive
Filter area: 7.5 m²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group Dust Filter Element 852 908 TI 2011-7.5 NOK – cylindrical dust filter element, Ø328 mm × 600 mm, 7.5 m² filter area
The element has a cylindrical design and is installed on the raw gas side. The inner diameter is Ø216 mm, the outer diameter is Ø328 mm, and the height is 600 mm—resulting in a filter area of 7.5 m².
Filter media TI 2011: polyester nonwoven fabric with stainless steel fibers, topped with a PTFE membrane; electrostatically dissipative. It is designed for fine, chargeable, and combustible dusts; this enables surface filtration even in ATEX-compliant areas of pharmaceutical and food processing applications. A microporous PTFE membrane ensures surface filtration. The filter is equipped with a polyurethane (PUR) seal and a sheet metal end cap. Pleat spacing: cam.
The filter basket is connected via a tie rod. For the same part number 852 908, the following are also available: TI 2011-7.5 BAND, TI 2011-10 BAND NOK, TI 2011/1-5 + DRG, and TI 2011/1-10 NOK. To ensure a precise fit, compare the outer diameter (Ø328 mm) and height (600 mm) with the previous model.
| Outer diameter (mm) | 328 |
| Electrostatic discharge capability | yes |
| Element fastening | Tie rod |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Faltenbeabstandung | Cam |
| Filter material | TI 2011 |
| Height (mm) | 600 |
| Inner diameter (mm) | 216 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Polyurethane (PUR) |
| Filter area (cm²) | 75000 |
