Filtration Group Dust Filter Element 852 926 TI 2011-0.3, Pack of 2
Cylindrical Dust Filter Element
Filter media: Polyester nonwoven fabric with stainless steel fibers and a PTFE membrane, electrically conductive
Filter area: 0.3 m²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

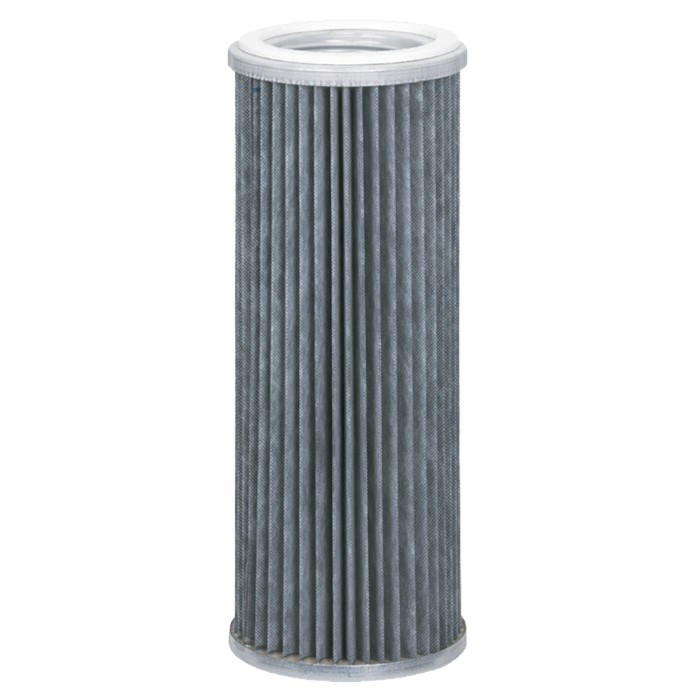

Filtration Group Dust Filter Cartridge 852 926 TI 2011-0.3, 2-pack – cylindrical dust filter cartridge, Ø120 mm × 200 mm, 0.3 m² filter area
The dust filter element has a cylindrical design and is installed on the raw gas side. With an outer diameter of Ø120 mm and a height of 200 mm, it provides 0.3 m² of filter area. This item is sold in packs of two.
TI 2011 is the name of the electrostatically dissipative filter material made of polyester nonwoven fabric, stainless steel fibers, and a PTFE membrane. The surface of the material is white, which distinguishes it from other conductive media. Filtration occurs at the surface: the PTFE membrane is microporous. The assembly includes a felt (polyester) gasket and a sheet metal end cap.
The mounting type is specified as Rd 72 x 5. When replacing the part, ensure that the outer diameter is 120 mm and the height is 200 mm; the mounting type varies within the 852 series.
| Outer diameter (mm) | 120 |
| Electrostatic discharge capability | yes |
| Element fastening | Rd 72 x 5 |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 2011 |
| Height (mm) | 200 |
| Inner diameter (mm) | 68 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Felt (polyester) |
| Filter area (cm²) | 3000 |
