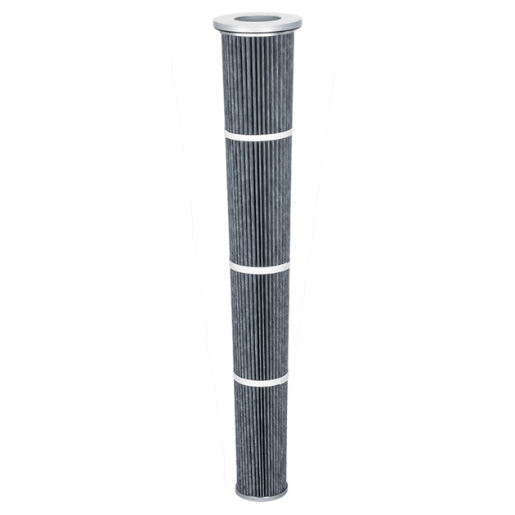

Filtration Group dust filter element 852 953 TI 07/1-2,5 V4A
Conical dust filter element
Diameter:120 mm
Filter material: Polyester fleece with PTFE membrane, electrically dissipative
Filter area: 2.5 m²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Dust filter element 852 953 TI 07/1-2.5 V4A / 76112031
Notes:
- The value of the volume flow is based on a filter surface load of 1.7 m³/m² min
- The initial pressure loss of > 25 pa depends on the volume flow and filter material
- The operating temperature depends on the medium/material
| Mounting diameter (mm) | 159 |
| Outer diameter (mm) | 186 |
| Electrostatic discharge capability | yes |
| Element fastening | not specified / other |
| Element shape | Conical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Wrinkle stabilisation | Banderole |
| Filter material | TI 07/1 |
| Height (mm) | 983 |
| Inner diameter (mm) | 98 |
| Installation | Ringstrasse side |
| Medium | Air |
| Seal material | Silicone |
