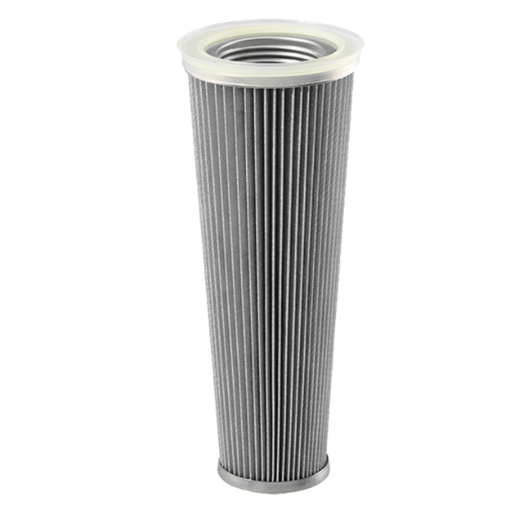

Filtration Group dust filter element 852 902 TI 08-0,5 V4A
Konisches Staubfilterelement
Durchmesser:200 mm
Filtermaterial: Polyestervlies, Aluminium beschichtet
Filterfläche: 0,5 m²
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (ehem. MAHLE) Staubfilterelement 852 902 TI 08-0,5 V4A / 76355309
Hinweise:
- Abweichungen der Volumenstromwerte sind bedingt durch Staubart und Gaszusammensetzung möglich.
- Die Betriebstemperatur ist medien-/werkstoffabhängig.
| Outer diameter (mm) | 120 |
| Electrostatic discharge capability | yes |
| Element fastening | Rd 72 x 5 |
| Element shape | Conical |
| Element type | 852 Series |
| End disc material | Blechendscheibe |
| Filter material | TI 08 |
| Height (mm) | 300 |
| Inner diameter (mm) | 68 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Felt (polyester) |
