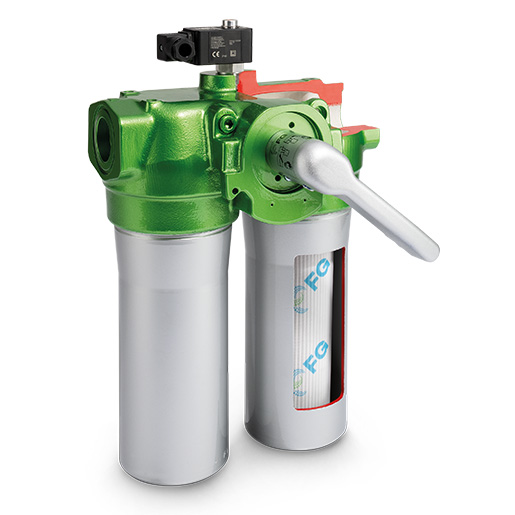

Filtration Group Low-pressure duplex filter Pi 2145-058
Low-pressure duplex filter Pi 21
Nominal size 45 l/min,
includes:
- Bypass
- Electrical maintenance indicator
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 2145-58 / 77774482
Low space requirement due to compact design
Bypass
Electrical maintenance indicator
Threaded connection
Changeover plug on dirty side only
Ergonomic changeover lever with pressure compensation and lever lock
Minimal pressure loss due to streamlined design of the components
Available with high-efficiency PS filter elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High dirt holding capacity and differential pressure stability of the elements
Important note:
We supply the Mahle Pi 2145-58 low-pressure duplex filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 1 1/2 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -10°C bis +120°C |
| Bypass valve Opening pressure (bar) | 3,5 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 32 |
| Nominal size | 450 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | ALU |
