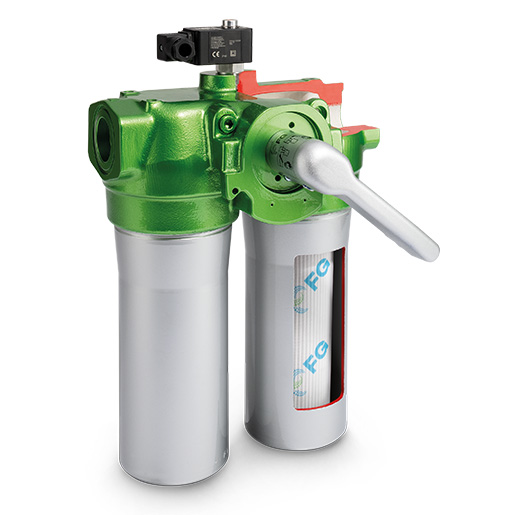

Filtration Group Pi 2130-057 Low-pressure duplex filter

https://www.filcom-technik.de/web/image/product.template/55479/image_1920?unique=b9685d6

Low-pressure duplex filter Pi 21
Nominal size 3 l/min,
includes:
- Bypass
- Visual maintenance indicator

1,452.42 € 1452.42 EUR 1,452.42 € VAT Included

1,453.00 € VAT Included

(1,452.42 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77774532

Category :

Filtration Group Duplex Filter

Weight :

9.30 kg

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 213-57 / 77774532

  • Low space requirement due to compact design
  • Bypass
  • Visual maintenance indicator
  • Threaded connection
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with pressure compensation and lever lock
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • Important note:
    We supply the Mahle Pi 213-57 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1 1/2
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 3,5
    Max. Operating pressure (bar) 32
    Nominal size 300
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material ALU
