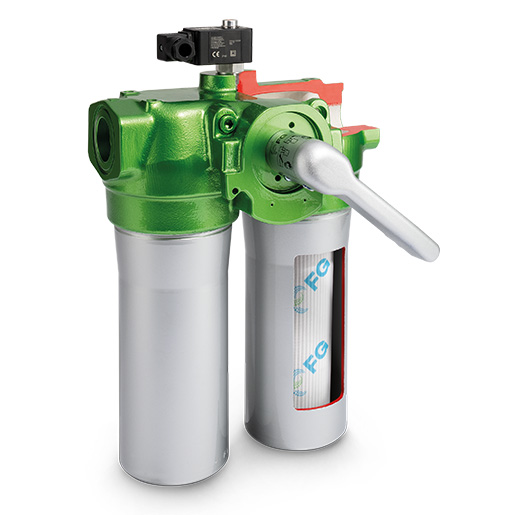

Filtration Group Low-pressure duplex filter Pi 2108-068
Low-pressure duplex filter Pi 21
Nominal size 8 l/min,
includes:
- Visual maintenance indicator
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 218-68 / 7781278
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle Pi 218-68 low-pressure duplex filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 1 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | mechanical |
| Operating temperature | -10°C bis +120°C |
| Max. Operating pressure (bar) | 63 |
| Nominal size | 80 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | ALU |
| Filter head material | ALU |
