Filtration Group Double switching filter PI 3730-012

Price:

1,806.28 €
    ​BLACK WEEK? TOP prices - 365 days a year!
English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group Double switching filter PI 3730-012
Filtration Group Low pressure double switching filter PI 2145-069 incl. Filter element PI 1045 KS MIC 25/K197
Filtration Group Low pressure double switching filter PI 2145-069 incl. Filter element PI 1045 KS MIC 25/K197
2,031.62 € 2,031.62 €
Filtration Group Low-pressure duplex filter Pi 21025-057
Filtration Group Low-pressure duplex filter Pi 21025-057
1,452.42 € 1,452.42 €

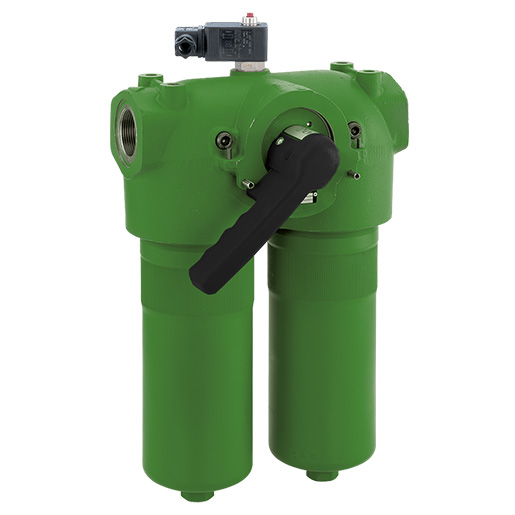

Filtration Group Double switching filter PI 3730-012

https://www.filcom-technik.de/web/image/product.template/52561/image_1920?unique=4f3451a

Medium-pressure duplex filter Pi 37
Nominal size 3 l/min,
includes:
- Bypass
- Visual maintenance indicator

1,806.28 € 1806.28 EUR 1,806.28 € VAT Included

1,807.00 € VAT Included

(1,806.28 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77810450

Category :

Filtration Group Duplex Filter

Weight :

36.50 kg

Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 373-12 / 778145

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Visual maintenance indicator
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with lever lock and pressure compensation
  • One-handed operation
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle medium-pressure duplex filter Pi 373-12 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1 1/2
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 7
    Max. Operating pressure (bar) 210
    Nominal size 300
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
