Filtration Group dust filter element 852 781 TI 15-10

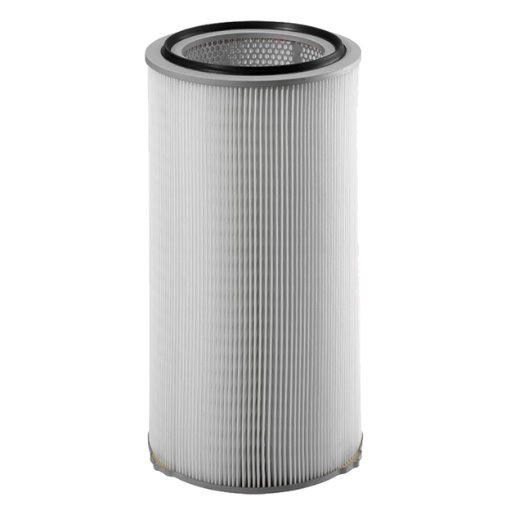

Cylindrical dust filter element
Diameter:328 mm
Filter material: polyester fleece
Filter area: 10 m²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Dust filter element 852 781 TI 15-10 / 77938046
Note:
Deviations in the volume flow rate value are possible due to the type of dust and gas composition.
| Mounting diameter (mm) | 325.5 |
| Outer diameter (mm) | 328 |
| Element fastening | not specified / other |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Faltenbeabstandung | Cam |
| Filter material | TI 15 |
| Height (mm) | 600 |
| Inner diameter (mm) | 216 |
| Installation | Ringstrasse side |
| Medium | Air |
| Seal material | Polyurethane (PUR) |
