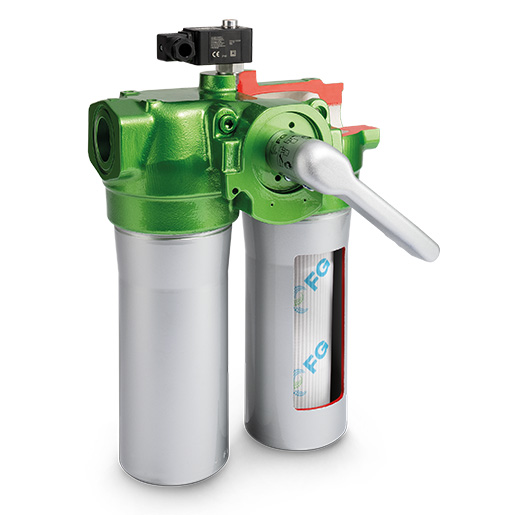

Filtration Group Low-pressure duplex filter PI 2108-047
Low-pressure double-switching filter Pi 21
Nominal size 8 l/min
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 218-47 / 77966757
Important note:
We supply the Mahle Pi 218-47 low-pressure duplex filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 1 |
| Operating temperature | -10°C bis +120°C |
| Bypass valve Opening pressure (bar) | 3,5 |
| Max. Operating pressure (bar) | 63 |
| Nominal size | 80 |
| Seal material | NBR |
| Filter housing material | ALU |
| Filter head material | ALU |
