Filtration Group dust filter element 852 904 TI 56/2-1,6

https://www.filcom-technik.de/web/image/product.template/226545/image_1920?unique=1194214

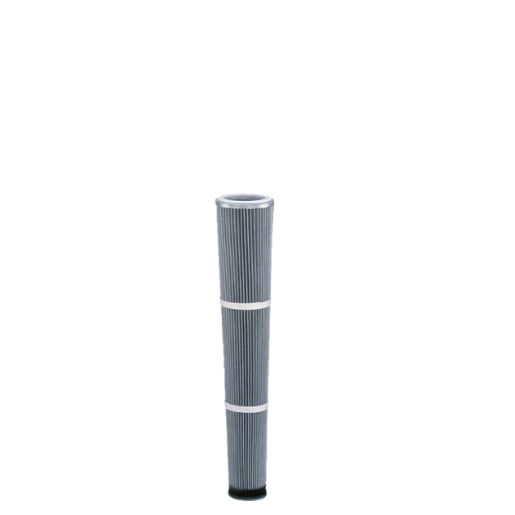

Conical dust filter element

Diameter:328 mm

Filter material: Polyester fleece with PTFE membrane

Filter area: 1.6 m²

197.06 € 197.06 EUR 197.06 € VAT Included

207.00 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

78311904

Category :

Dedusting Filter Media

Weight :

1.05 kg

Filtration Group (formerly MAHLE) Dust filter element 852 904 TI 56/2-1.6 / 78311904

  • Lower filter surface load due to reduced inflow velocity
  • Even cleaning down to the lower area
  • 3 % more free area - thus improved dust sedimentation
  • Longer element service life thanks to improved cleaning line

    • Notes:
    - Deviations in the volume flow values are possible due to the type of dust and gas composition.
    - The operating temperature depends on the medium/material.

    Outer diameter (mm) 120
    Element fastening Rd 72 x 5
    Element shape Conical
    Element type 852 Series
    End disc material Sheet metal end plate
    Wrinkle stabilisation Banderole
    Filter material TI 56/2
    Height (mm) 983
    Inner diameter (mm) 68
    Installation Raw gas side
    Medium Air
    Seal material Felt (polyester)
    FG-Datenblatt_fg-120nk-de
