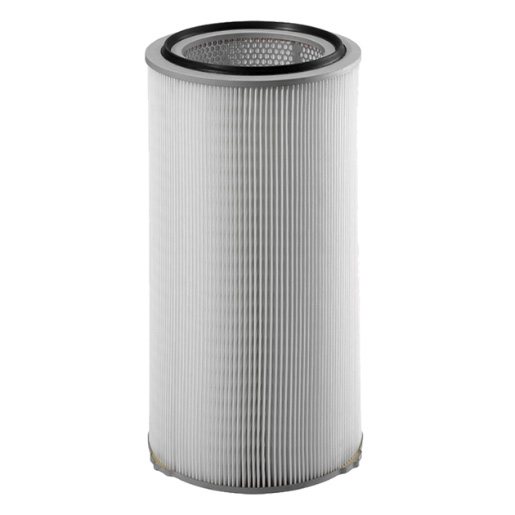

Filtration Group dust filter element 852 908 TI 07/1-7,5 V4A
Cylindrical dust filter element
Filter material: Polyester fleece with PTFE membrane, electrically dissipative
Filter area: 7.5 m²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Dust filter element 852 98 TI 7/1-7.5 V4A / 79354788
Note:
Deviations in the volume flow values are possible due to the type of dust and gas composition.
| Outer diameter (mm) | 328 |
| Electrostatic discharge capability | yes |
| Element fastening | Tie rod |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 07/1 |
| Height (mm) | 600 |
| Inner diameter (mm) | 216 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Polyurethane (PUR) |
