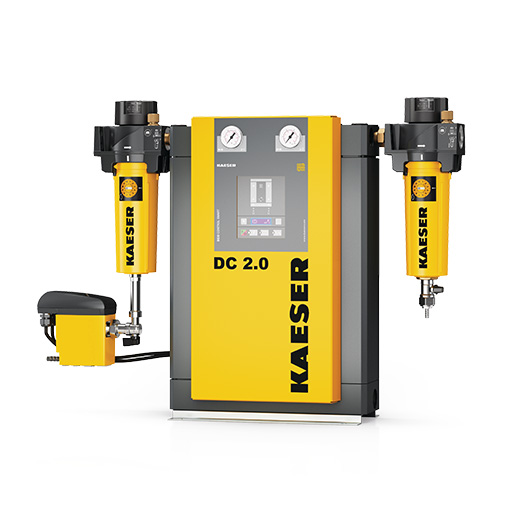

KAESER Heatless regenerative desiccant dryer DC 2.0 95-240/AC
Volumenstrom bei DTP -40° C: 0,20 (m³/min) | Anschluss Druckluft G 1/2
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Die kompakten Adsorptionstrockner der Serie DC erreichen Drucktaupunkte von -40 °C bzw. -70 °C. Sie zeichnen sich durch hohe Zuverlässigkeit, geringe Geräuschentwicklung und niedrige Lebenszykluskosten aus. Mit flexiblen Druckluftanschlüssen und der serienmäßigen SIGMA CONTROL SMART-Netzwerkschnittstelle ermöglichen sie eine einfache Installation. Außerdem sind sie mit KAESER-Filtern und einem ECO-DRAIN am Vorfilter ausgestattet.
| Volume flow at DTP -40° C (m³/min) | 0,20 |
| Pressure loss at DTP -40° C (bar) | < 0,2 |
| Volume flow at DTP -70° C (m³/min) | 0,11 |
| Pressure loss at DTP -70° C (bar) | < 0,2 |
| Min. overpressure (bar) | 4 |
| Max. Overpressure (bar) | 15 |
| Min. ambient temperature (°C) | +2 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +2 |
| Max. Compressed air inlet temperature (°C) | +50 |
| Volume of compressed air tank (litres) | 3 |
| Width (mm) | 627 |
| Depth (mm) | 167 |
| Height (mm) | 535 |
| Compressed air connection | G 1/2 |
| Electrical supply | 95-240 VAC / 50-60 Hz |
| Control type | ECO CONTROL SMART |
