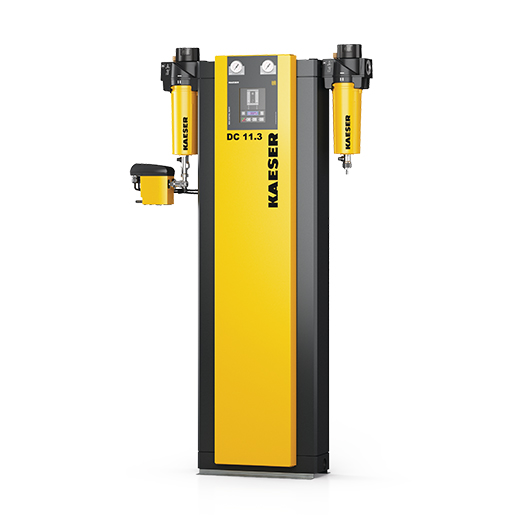

KAESER Heatless regenerative desiccant dryer DC 11.3 95-240/AC
Volume flow at DTP -40° C: 1.13 (m³/min) | Compressed air connection G 3/4
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
The compact adsorption dryers in the DC series achieve pressure dew points of -40 °C or -70 °C. They are characterized by high reliability, low noise levels and low life cycle costs. With flexible compressed air connections and the SIGMA CONTROL SMART network interface as standard, they are easy to install. They are also equipped with KAESER filters and an ECO-DRAIN on the pre-filter.
| Volume flow at DTP -40° C (m³/min) | 1,13 |
| Pressure loss at DTP -40° C (bar) | < 0,2 |
| Volume flow at DTP -70° C (m³/min) | 0,63 |
| Pressure loss at DTP -70° C (bar) | < 0,2 |
| Min. overpressure (bar) | 4 |
| Max. Overpressure (bar) | 15 |
| Min. ambient temperature (°C) | +2 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +2 |
| Max. Compressed air inlet temperature (°C) | +50 |
| Volume of compressed air tank (litres) | 11 |
| Width (mm) | 695 |
| Depth (mm) | 187 |
| Height (mm) | 1289 |
| Compressed air connection | G 3/4 |
| Electrical supply | 95-240 VAC / 50-60 Hz |
| Control type | ECO CONTROL SMART |
