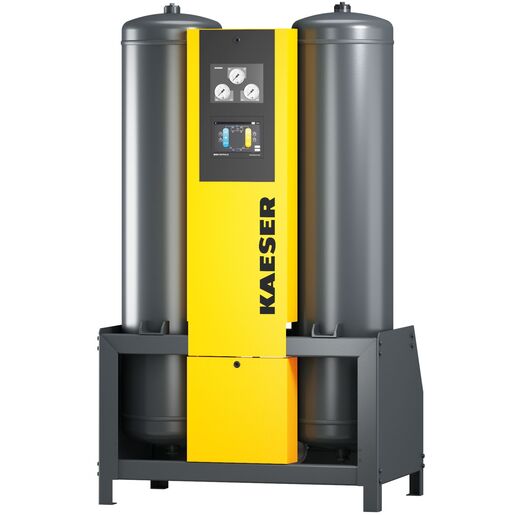

KAESER Adsorption dryer model i.DC 52
Volume flow at DTP -40° C: 5.20 (m³/min) | Compressed air connection G 1 1/2
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
The high-performance, cold-regenerating adsorption dryers in the DC series guarantee maximum process reliability and low service costs thanks to the use of high-quality components. Thanks to the intelligent ECO CONTROL 3 energy-saving control system, energy use is optimized according to demand. Their standard network capability and comprehensive process monitoring offer transparency and efficiency. Furthermore, the dryers are equipped with KAESER filters and an ECO-DRAIN on the pre-filter.
| Volume flow at DTP -40° C (m³/min) | 5,20 |
| Pressure loss at DTP -40° C (bar) | < 0,2 |
| Volume flow at DTP -70° C (m³/min) | 5,2 |
| Pressure loss at DTP -70° C (bar) | < 0,2 |
| Min. overpressure (bar) | 5 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | +2 |
| Max. Ambient temperature (°C) | +45 |
| Min. inlet temperature compressed air (°C) | +2 |
| Max. Compressed air inlet temperature (°C) | 50 |
| Volume of compressed air tank (litres) | 93 |
| Width (mm) | 1150 |
| Depth (mm) | 750 |
| Height (mm) | 1980 |
| Compressed air connection | G 1½ |
| Electrical supply | 100-240 VAC/50|60Hz or 24 V DC |
| Control type | ECO CONTROL 3 |
