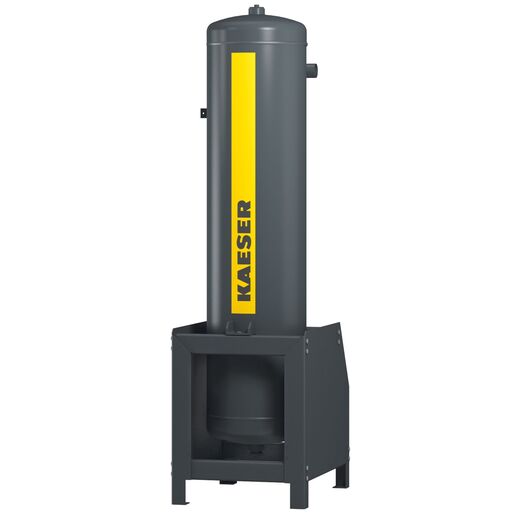

KAESER Activated carbon adsorber model ACT 67
Volume flow: 6.70 m³/min | Compressed air connection: R 1 1/2
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
902724.0Category :
Activated Carbon AdsorbersWeight :
170.00 kgDelivery area :
GermanyKAESER ACT activated carbon adsorbers provide technically oil-free and odorless compressed air for continuous applications. They achieve residual oil contents of class 1 in accordance with ISO 8573-1 and protect sensitive production processes. With an oil vapor indicator, they guarantee a service life of up to 12,000 full-load hours or 5 years and are economical thanks to their low pressure loss.
| Volume flow (m³/min) | 6,70 |
| Pressure loss (bar) | 0,1 |
| Min. overpressure (bar) | 4 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | +2 |
| Max. Ambient temperature (°C) | +45 |
| Volume of compressed air tank (litres) | 93 |
| Width (mm) | 550 |
| Depth (mm) | 750 |
| Height (mm) | 1980 |
| Compressed air connection | R 1½ |
| Min. inlet temperature compressed air (°C) | +2 |
| Max. Compressed air inlet temperature (°C) | +55 |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[102125.10601] KAESER Filter Dust model F83KD G 1 1/2"](/web/image/product.template/262321/image_128/%5B102125.10601%5D%20KAESER%20Filter%20Dust%20model%20F83KD%20G%201%201-2%22?unique=3f88f88)
|
Volume flow: 8.25 m³/min |
923.74 € | |
![[102126.20641] KAESER Filter Extra model F83KE G 1 1/2", ECO-DRAIN 31F](/web/image/product.template/262325/image_128/%5B102126.20641%5D%20KAESER%20Filter%20Extra%20model%20F83KE%20G%201%201-2%22%2C%20ECO-DRAIN%2031F?unique=3f88f88)
|
Volume flow: 8.25 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
1,229.87 € | |

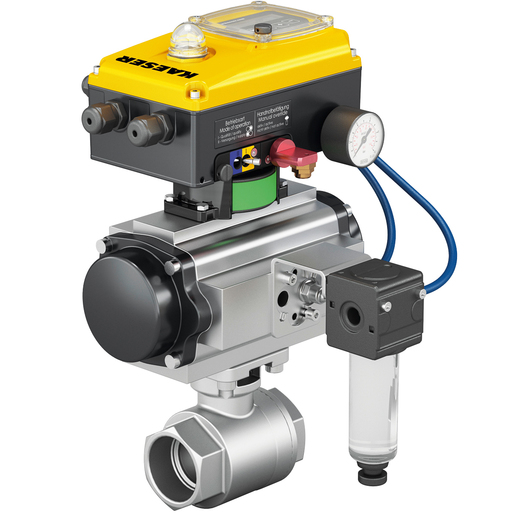

![[920024.2] KAESER Pressure maintenance system Model DHS4.0 32G G1 1/4" PS16](/web/image/product.template/102677/image_128/%5B920024.2%5D%20KAESER%20Pressure%20maintenance%20system%20Model%20DHS4.0%2032G%20G1%201-4%22%20PS16?unique=ac8c843)
|
