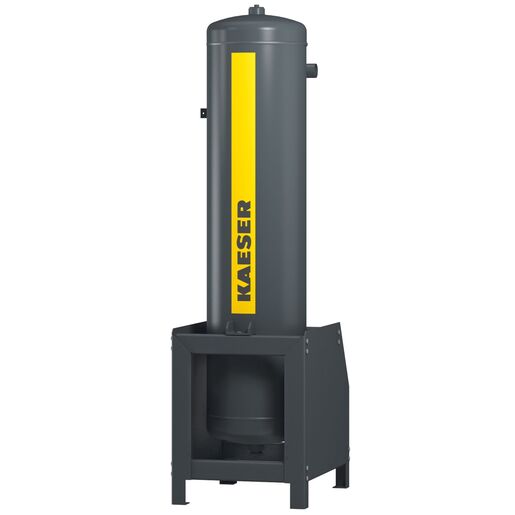

KAESER Activated carbon adsorber model ACT 84

Volume flow: 8.4 m³/min | Compressed air connection: R 2

6,185.03 € 6185.03 EUR 6,185.03 € VAT Included

6,930.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

902725.0

Category :

Activated Carbon Adsorbers

Weight :

215.00 kg

Delivery area :

Germany

KAESER ACT activated carbon adsorbers provide technically oil-free and odorless compressed air for continuous applications. They achieve residual oil contents of class 1 in accordance with ISO 8573-1 and protect sensitive production processes. With an oil vapor indicator, they guarantee a service life of up to 12,000 full-load hours or 5 years and are economical thanks to their low pressure loss.

Volume flow (m³/min)	8,4
Pressure loss (bar)	0,10
Min. overpressure (bar)	4
Max. Overpressure (bar)	16
Min. ambient temperature (°C)	+2
Max. Ambient temperature (°C)	+45
Volume of compressed air tank (litres)	133
Width (mm)	550
Depth (mm)	750
Height (mm)	1990
Compressed air connection	R 2
Min. inlet temperature compressed air (°C)	+2
Max. Compressed air inlet temperature (°C)	+55

KAESER Betriebsanleitung ACT 16 - ACT 1555

Download

Accessoires and suitable extensions

	Price
[102125.10601] KAESER Filter Dust model F83KD G 1 1/2" Volume flow: 8.25 m³/min	923.74 €	Add to cart
[102126.20641] KAESER Filter Extra model F83KE G 1 1/2", ECO-DRAIN 31F Volume flow: 8.25 m³/min \| Residual aerosol content at outlet: < 0.1 mg/m³	1,229.87 €	Add to cart

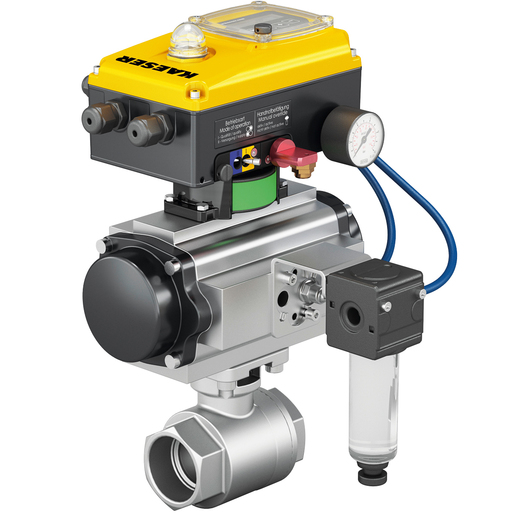

[920026.2] KAESER Pressure maintenance system Model DHS4.0 50G G2" PS16 DHS 4.0 Electronic Pressure Maintenance System \| 2" G \| Ball Valve \| 16 bar \| Pulse Width Modulation \| SIGMA NETWORK	3,445.05 €	Add to cart
