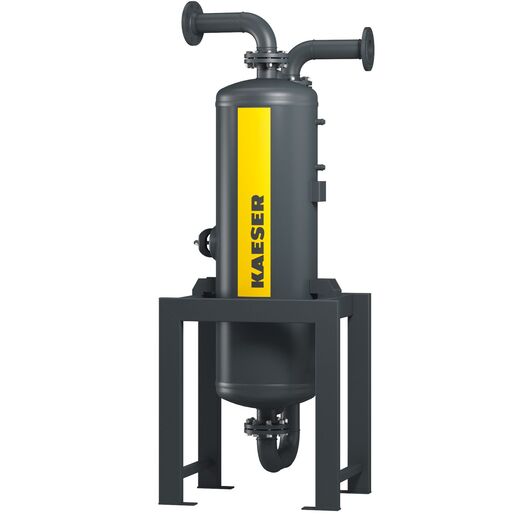

KAESER Activated carbon adsorber model ACT 115

Price:

7,282.80 €

English (US)
  2. Shop
  3. Activated Carbon Adsorbers
  4. KAESER Activated carbon adsorber model ACT 115
KAESER Activated carbon adsorber model ACT 52
KAESER Activated carbon adsorber model ACT 52
5,381.78 € 5,381.78 €
KAESER Activated carbon adsorber model ACT 16
KAESER Activated carbon adsorber model ACT 16
3,565.54 € 3,565.54 €

KAESER Activated carbon adsorber model ACT 115

https://www.filcom-technik.de/web/image/product.template/237585/image_1920?unique=8450e10

Volume flow: 11.50 m³/min | Compressed air connection: R 2

7,282.80 € 7282.8 EUR 7,282.80 € VAT Included

8,160.00 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
KAESER Kompressoren SE

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

902726.0

Category :

Activated Carbon Adsorbers

Weight :

260.00 kg

Delivery area :

Germany

KAESER ACT activated carbon adsorbers provide technically oil-free and odorless compressed air for continuous applications. They achieve residual oil contents of class 1 in accordance with ISO 8573-1 and protect sensitive production processes. With an oil vapor indicator, they guarantee a service life of up to 12,000 full-load hours or 5 years and are economical thanks to their low pressure loss.

Volume flow (m³/min) 11,50
Pressure loss (bar) 0,10
Min. overpressure (bar) 4
Max. Overpressure (bar) 16
Min. ambient temperature (°C) +2
Max. Ambient temperature (°C) +45
Volume of compressed air tank (litres) 160
Width (mm) 550
Depth (mm) 750
Height (mm) 1990
Compressed air connection R 2
Min. inlet temperature compressed air (°C) +2
Max. Compressed air inlet temperature (°C) +55
KAESER Betriebsanleitung ACT 16 - ACT 1555
Download

Accessoires and suitable extensions

Product Price
[102128.10701] KAESER Filter Dust model F110KD G 2"

Volume flow: 11.00 m³/min

 1,195.06 €
[102129.20741] KAESER Filter Extra model F110KE G 2", ECO-DRAIN 31F

Volume flow: 11.00 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³

 1,501.19 €
[920026.2] KAESER Pressure maintenance system Model DHS4.0 50G G2" PS16

KAESER DHS 4.0 pressure maintenance systems protect the treatment components and ensure reliable compressed air quality, even if the supply is completely switched off. They ensure the minimum pressure for safe operation when restarting. Thanks to the patented pulse-width modulated control system, they are optimally prepared for extreme pneumatic situations and are easy to install.

 3,445.05 €
