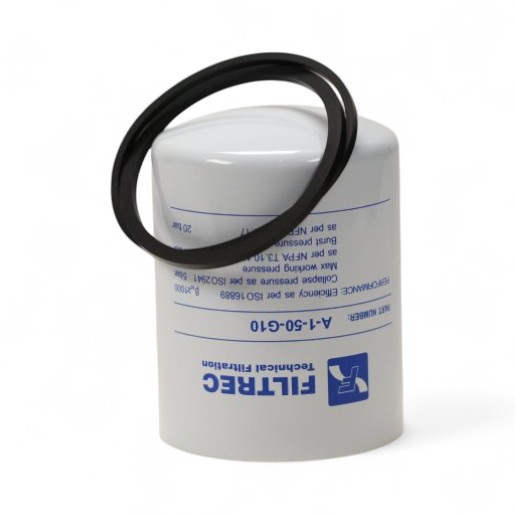

FILTREC spin-on filter SpinOn A150G10
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC line filter A150G10 - glass fiber, 12µm
The FILTREC filter element for line filter A150G10 with glass fiber filter medium, 12µm filter fineness, NBR seal and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 14 |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 128 |
| Height (mm) | 170 |
| Connection thread | 1 1/2"-16 UN |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Seal material | NBR |
| A | 128 mm |
| B | 1 1/2"-16 UN |
| C | 170 |
