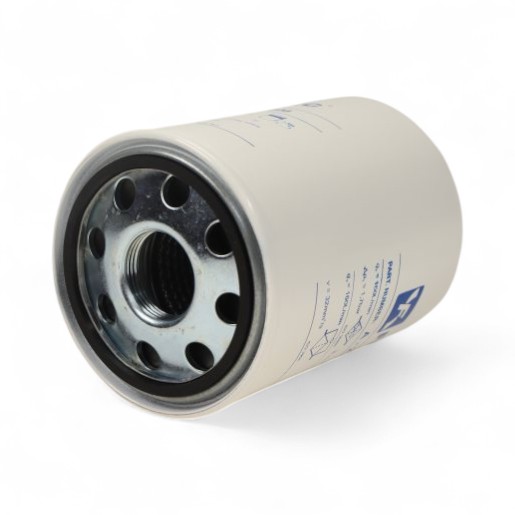

FILTREC hydraulic filter SpinOn A220C10BM
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element A220C10BM - cellulose, 10µm
The FILTREC filter element for filter element A220C10BM with cellulose filter medium, 10µm filter fineness, NBR seal and max. 4 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 12 |
| max. differential pressure (bar) | 4 |
| Outer diameter (mm) | 128 |
| Height (mm) | 182 |
| Connection thread | 1 1/4"-11 BSP |
| Filter material | Cellulose |
| Filter fineness (micrometres) | 10 |
| Filter fineness c (micrometer) | ß10=2 |
| Seal material | NBR |
| A | 128 mm |
| B | 1 1/4"-11 BSP |
| C | 182 mm |
