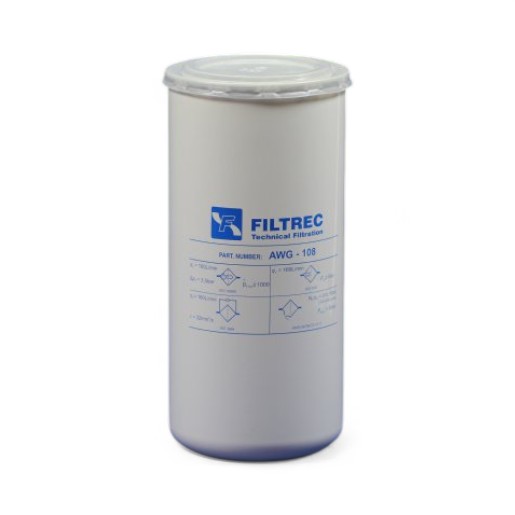

FILTREC spin-on filter SpinOn AWG108
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element AWG108 - glass fiber, 10µm
The FILTREC filter element for filter element AWG108 with glass fiber filter medium, 10µm filter fineness and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 16 |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 136 |
| Height (mm) | 309.5 |
| Connection thread | 1"1/2-16 UN 2 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß10=200 |

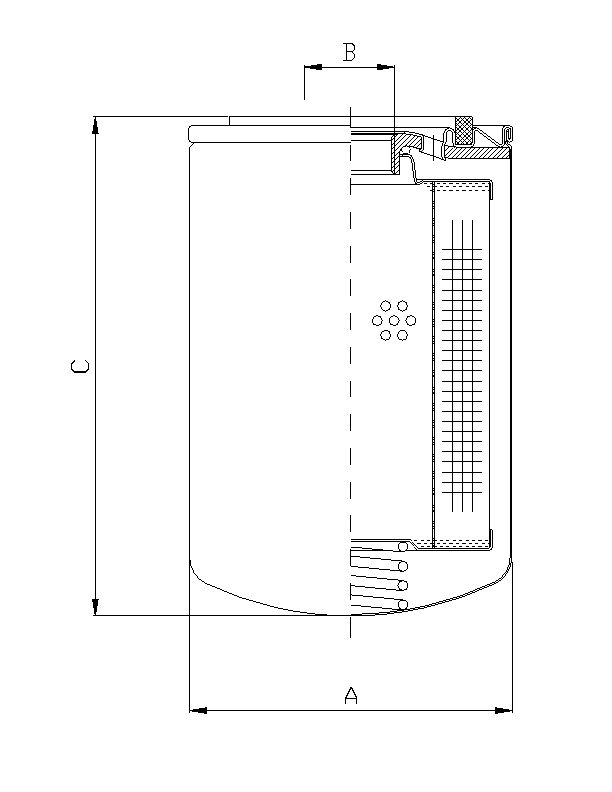

| A | 136 |
| B | 1"1/2-16 UN 2 |
| C | 3095 |
| D | 1416 |
