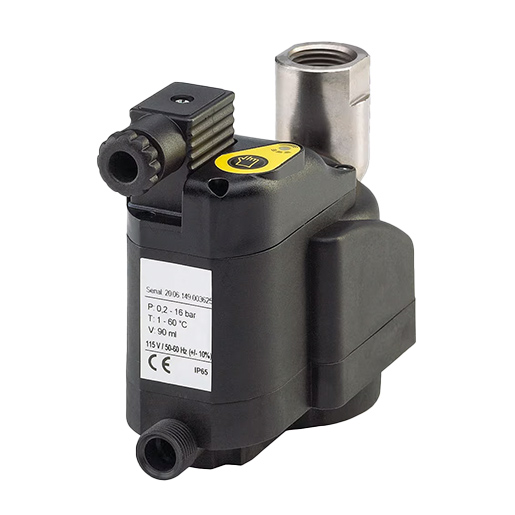

Parker electronic condensate drain ecodrain EDE0601-G230
As a global leader, Parker offers a comprehensive range of technologies for filtration and separation, cooling, and adsorption, covering virtually all aspects of compressed air and gas treatment.
Original Parker Zander condensate drain ecodrain EDE0601-G230
fully automatic electronic condensate drain
magnetic level-controlled
wear-free magnetic core level control for loss-free and optimum condensate drainage
with integrated dirt strainer between level measurement and drain valve to protect the diaphragm valve with continuous alarm monitoring
large diaphragm valve with condensate pilot control for a long service life
potential-free fault signaling contact
Supply voltage 230 V, 50-60 Hz
CE marking in accordance with Pressure Equipment Directive 97/23/EC (PED) for fluid group 2
| Max. Compressor capacity (m³/min) | 30 |
| Max. Refrigeration dryer capacity (m³/min) | 60 |
| Max. Filter capacity (m³/min) | 300 |
| Height (mm) | 214 |
| Depth (mm) | 163 |
| Width (mm) | 69 |
| Condensate inlet connection | G 1/2 F (G 1/2) |
| Condensate drain connection | Hose nozzle D 12mm |
