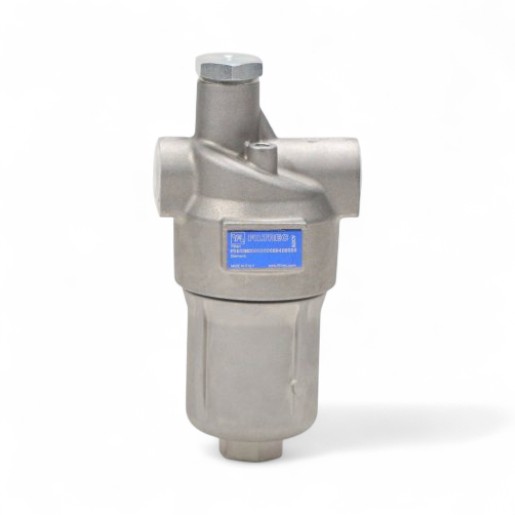

FILTREC in-line filter housing (pressure filter) F040DMD0005000BB4DS000
Filter element not included ►see accessories
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter F040DMD0005000BB4DS000
The FILTREC filter element for pressure filter F040DMD0005000BB4DS000 with NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 70 |
| Connection thread | 3/4" BSP |
| Seal material | NBR |
| A | 3/4" BSP |
| D1 | 65 |
| H1 | 160 |
| H2 | 100 |
| L1 | 95 mm |
| Bypass Valve Opening Pressure (bar) | dp 3,5 |
| F | M8;12 tief |
| Operating Temperature | -25°C bis +100°C |
| Filter Head – Material | Aluminiumlegierung |
| Filter Housing – Material | Aluminiumlegierung |
| Volume flow (l/min) | s. Datenblatt |
| Mounting Position | Leitungseinbau |
| Filter element | nicht im Lieferumfang enthalten |
| B1 | 19 |
| R | 110 |
| B2 | 28 |
| B3 | 15 |
| Maintenance Indicator - Bore | Mit Verschlussstopfen |
| B4 | 45 |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

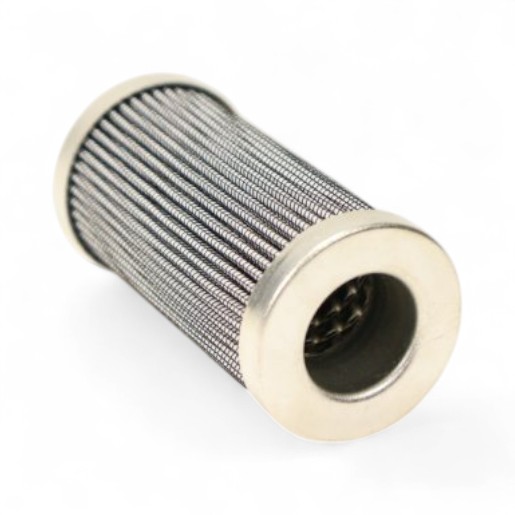

![[DMD0005E10B] FILTREC hydraulic filter element (pressure filter) DMD0005E10B](/web/image/product.template/292303/image_128/%5BDMD0005E10B%5D%20FILTREC%20hydraulic%20filter%20element%20%28pressure%20filter%29%20DMD0005E10B?unique=c618708)
|
29.30 € | ||

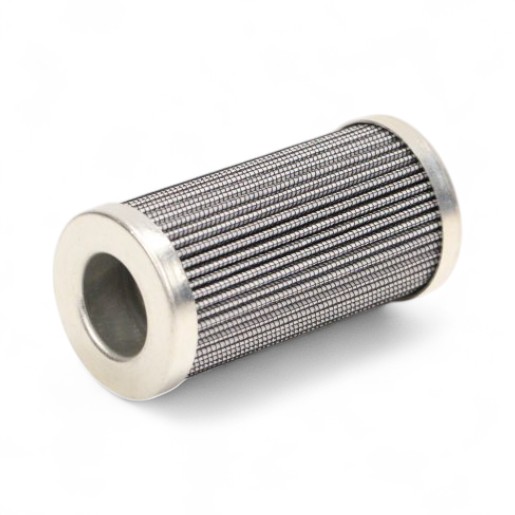

![[DMD0005E20B] FILTREC hydraulic filter element (pressure filter) DMD0005E20B](/web/image/product.template/292304/image_128/%5BDMD0005E20B%5D%20FILTREC%20hydraulic%20filter%20element%20%28pressure%20filter%29%20DMD0005E20B?unique=e1a0bce)
|
31.25 € | ||

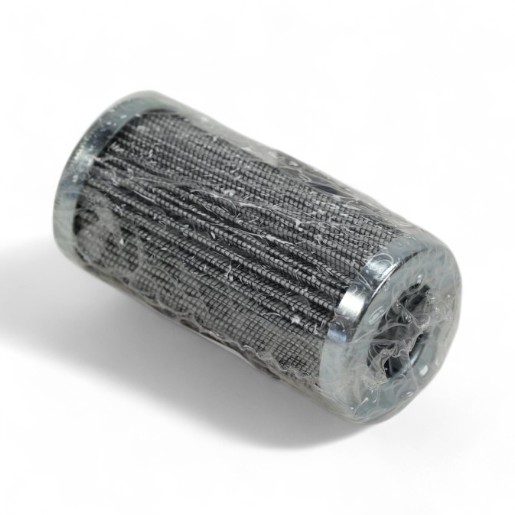

![[DMD0005F03B] FILTREC hydraulic filter element (pressure filter) DMD0005F03B](/web/image/product.template/292305/image_128/%5BDMD0005F03B%5D%20FILTREC%20hydraulic%20filter%20element%20%28pressure%20filter%29%20DMD0005F03B?unique=eb9c7d6)
|
57.45 € | ||

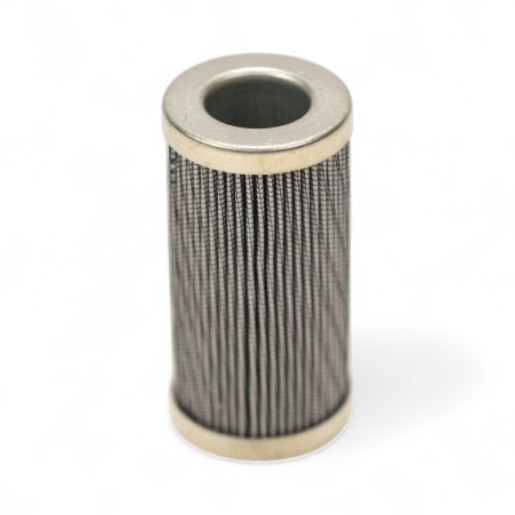

![[DMD0005F05B] FILTREC filter element for pressure filter DMD0005F05B](/web/image/product.template/291009/image_128/%5BDMD0005F05B%5D%20FILTREC%20filter%20element%20for%20pressure%20filter%20DMD0005F05B?unique=703f27e)
|
57.45 € | ||

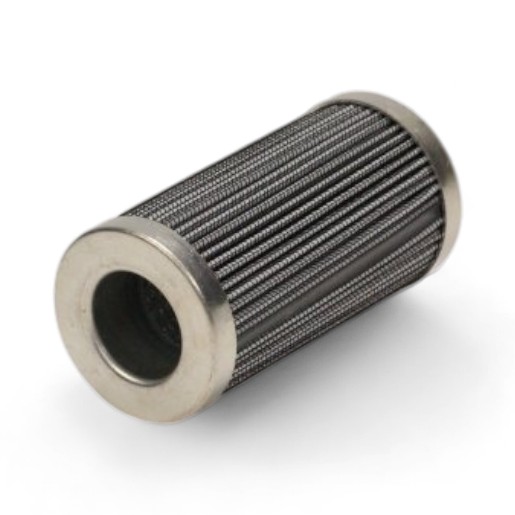

![[DMD0005F10B] FILTREC filter element for pressure filter DMD0005F10B](/web/image/product.template/291010/image_128/%5BDMD0005F10B%5D%20FILTREC%20filter%20element%20for%20pressure%20filter%20DMD0005F10B?unique=1f9a6f8)
|
57.27 € | ||

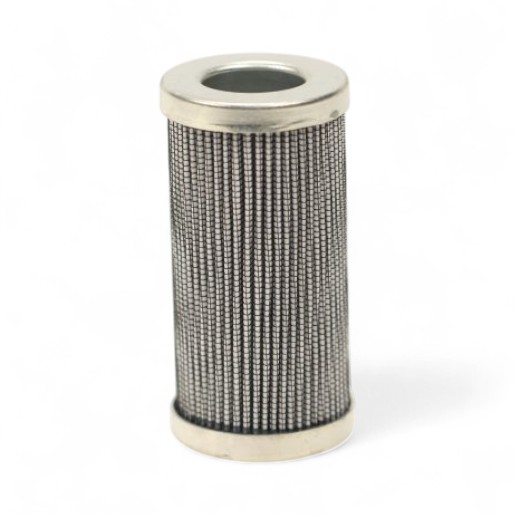

![[DMD0005F20B] FILTREC filter element for pressure filter DMD0005F20B](/web/image/product.template/291011/image_128/%5BDMD0005F20B%5D%20FILTREC%20filter%20element%20for%20pressure%20filter%20DMD0005F20B?unique=bae8a2c)
|
