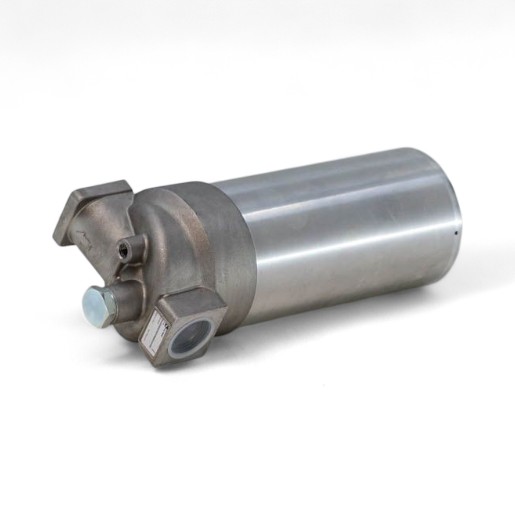

FILTREC in-line filter housing (pressure filter) F040DMD0030000BB60S000S0
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter F040DMD0030000BB60S000S0 - not included in the scope of delivery
The FILTREC filter element for pressure filter F040DMD0030000BB60S000S0 with filter medium not included in the scope of delivery and NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 40 |
| Connection thread | 1 1/4" BSP |
| Filter material | not included in the scope of delivery |
| Seal material | NBR |
| A | 1 1/4" BSP |
| D1 | 109 |
| H1 | 343 |
| H2 | 124 |
| L1 | 150 |
| F | M12; 18 tief |
| Operating Temperature | -25°C bis +100°C |
| Filter Head – Material | Aluminiumlegierung |
| Filter Housing – Material | Aluminiumlegierung |
| Volume flow (l/min) | s. Datenblatt |
| Mounting Position | Leitungseinbau |
| B1 | 30 |
| R | 130 |
| B2 | 24 |
| B3 | 26 |
| Maintenance Indicator - Bore | Mit Verschlussstopfen |
| B4 | 60 |
