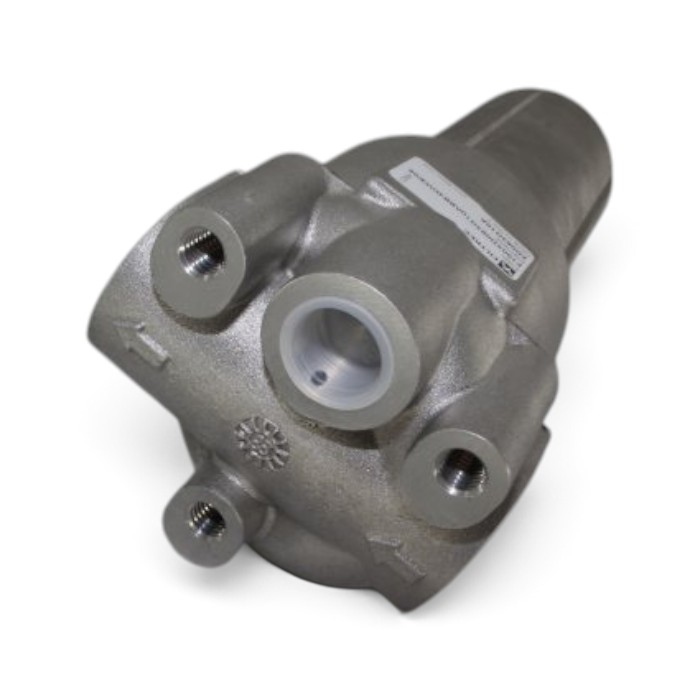

FILTREC in-line filter (pressure filter) F100XD063G10ABB4DWE05
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter F100XD063G10ABB4DWE05 - glass fiber, 12µm
The FILTREC filter element for pressure filter F100XD063G10ABB4DWE05 with glass fiber filter medium, 12µm filter fineness, NBR seal and max. 21 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 100 |
| max. differential pressure (bar) | 21 |
| Connection thread | 3/4" BSP |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Seal material | NBR |
| A | 3/4" BSP |
| D1 | 65 |
| H1 | 253 |
| H2 | 95 |
| L1 | 90 mm |
| Bypass Valve Opening Pressure (bar) | dp 6 |
| F | M 10;15 tief |
| Operating Temperature | -25°C bis +100°C |
| Filter Head – Material | Aluminiumlegierung |
| Filter Housing – Material | Aluminiumlegierung |
| Volume flow (l/min) | s. Datenblatt |
| Mounting Position | Leitungseinbau |
| Filter element | XD063G10A |
| B1 | 25 |
| R | 110 |
| B2 | 27,5 |
| B3 | 25 |
| Maintenance Indicator / Switch | elektrisch |
| B4 | 60,6 |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

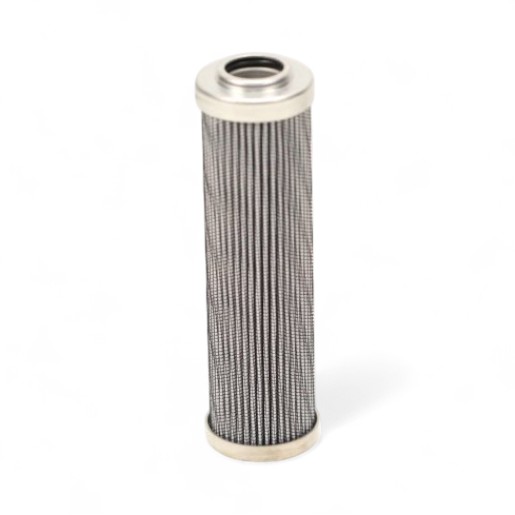

![[XD063G10A] FILTREC hydraulic filter element (pressure filter) XD063G10A](/web/image/product.template/292425/image_128/%5BXD063G10A%5D%20FILTREC%20hydraulic%20filter%20element%20%28pressure%20filter%29%20XD063G10A?unique=a51824e)
|
38.22 € | ||
