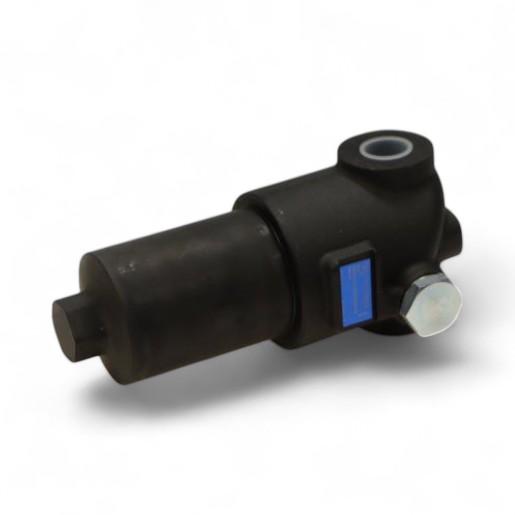

FILTREC in-line filter housing (pressure filter) F420D111000BB4DT000
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter F420D111000BB4DT000
The FILTREC filter element for pressure filter F420D111000BB4DT000 with NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 420 |
| Connection thread | 3/4" BSP |
| Seal material | NBR |
| A | 3/4" BSP |
| D1 | 70 |
| H1 | 210 |
| H2 | 103 |
| L1 | 100 mm |
| Bypass Valve Opening Pressure (bar) | dp 6 |
| F | M8; 15 tief |
| Operating Temperature | -25°C bis +100°C |
| Filter Head – Material | Gusseisen |
| Filter Housing – Material | Stahl extrudiert |
| Volume flow (l/min) | s. Datenblatt |
| Mounting Position | Leitungseinbau |
| Filter element | nicht im Lieferumfang enthalten |
| B1 | 27 |
| R | 130 |
| B2 | 46 |
| Maintenance Indicator - Bore | ja |
