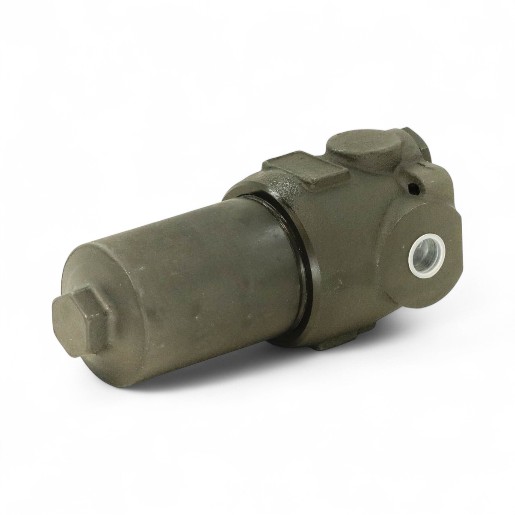

FILTREC in-line filter housing (pressure filter) FH320D120000VB3DS000S0
Filter element not included ►see accessories
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter FH320D120000VB3DS000S0
The FILTREC filter element for pressure filter FH320D120000VB3DS000S0 with FKM seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 320 |
| Connection thread | G 1/2" |
| Seal material | NBR |
| A | G 1/2" |
| D1 | 70 |
| H1 | 198 |
| H2 | 88 |
| L1 | 90 mm |
| F | M 10;15 tief |
| Operating Temperature | -30°C bis +100°C |
| Filter Head – Material | Gusseisen |
| Filter Housing – Material | extrudierter Stahl |
| Volume flow (l/min) | s. Datenblatt |
| Mounting Position | Leitungseinbau |
| Filter element | nicht enthalten |
| B1 | 23 |
| R | 110 |
| B3 | 60,6 |
| Maintenance Indicator - Bore | ja |
| Maintenance Indicator / Switch | nicht enthalten |
| B4 | 27,5 |

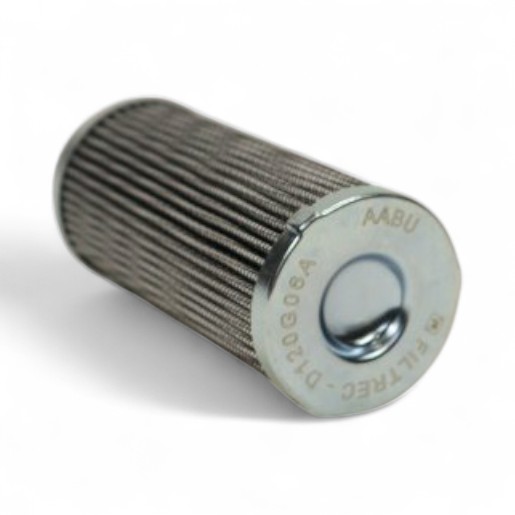

![[D120G06A] FILTREC filter element for pressure filter D120G06A](/web/image/product.template/290599/image_128/%5BD120G06A%5D%20FILTREC%20filter%20element%20for%20pressure%20filter%20D120G06A?unique=19a86b6)

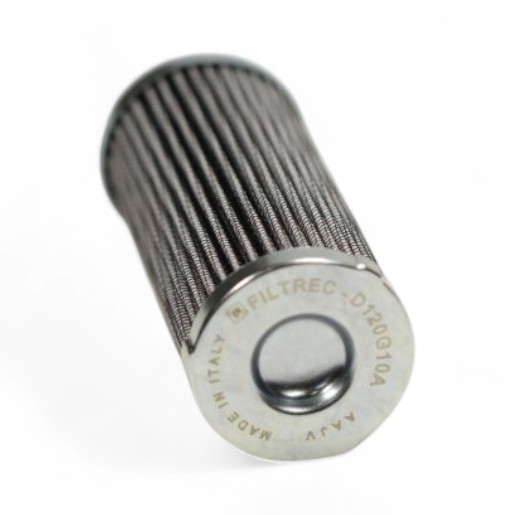

![[D120G10A] FILTREC hydraulic filter element (pressure filter) D120G10A](/web/image/product.template/291997/image_128/%5BD120G10A%5D%20FILTREC%20hydraulic%20filter%20element%20%28pressure%20filter%29%20D120G10A?unique=3849a04)

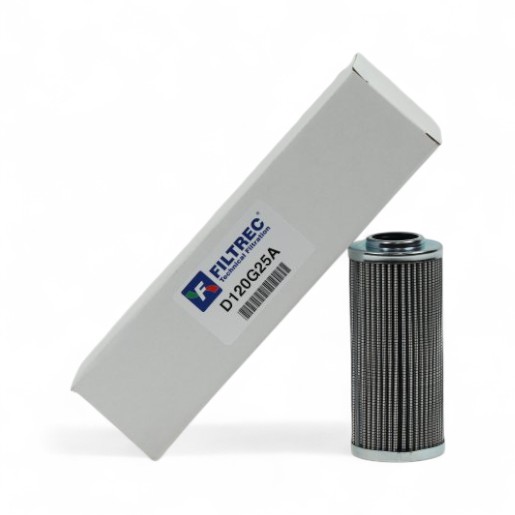

![[D120G25A] FILTREC hydraulic filter element (pressure filter) D120G25A](/web/image/product.template/291998/image_128/%5BD120G25A%5D%20FILTREC%20hydraulic%20filter%20element%20%28pressure%20filter%29%20D120G25A?unique=b5dee22)
