KAESER Filter Extra model F26KE G 1", ECO-DRAIN 30
Volumenstrom: 2,60 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
MDM500011469Category :
Compressed Air FiltersWeight :
4.50 kgDelivery area :
DeutschlandDer KAESER Koaleszenzfilter Extra bietet die gleiche effektive Filtration wie das Modell KB, jedoch für eine noch höhere Druckluftqualität. Er entfernt zuverlässig Feststoff- und Flüssig-Aerosole sowie Feinstpartikel und schützt so Ihre Druckluftsysteme optimal.
| Volume flow (m³/min) | 2,60 |
| Compressed air inlet connection | G 1" |
| Differential pressure in new condition | <0,05 |
| Differential pressure at saturation | <0,2 |
| Residual aerosol content | <0,01 |
| Min. overpressure (bar) | 2 |
| Max. Overpressure (bar) | 16 |
| Weight (kg) | 4,5 |
| Width (mm) | 225 |
| Height (mm) | 538 |
| Depth (mm) | 209 |
| Condensate drain | ECO-DRAIN 30 |
| Degree of filtration | KE - Coalescence filter Extra |
Product variants
| Product | Price | ||
|---|---|---|---|
![[MDM500199818] KAESER Filter Extra model F26KE G 1", Ball valve](/web/image/product.template/262476/image_128/%5BMDM500199818%5D%20KAESER%20Filter%20Extra%20model%20F26KE%20G%201%22%2C%20Ball%20valve?unique=3cc15d9)
|
Volumenstrom: 2,60 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³ |
546.21 € | |
![[102119.10441] KAESER Filter Extra model F26KE G 1", ECO-DRAIN 31F](/web/image/product.template/262301/image_128/%5B102119.10441%5D%20KAESER%20Filter%20Extra%20model%20F26KE%20G%201%22%2C%20ECO-DRAIN%2031F?unique=3cc15d9)
|
Volumenstrom: 2,60 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³ |
869.30 € | |

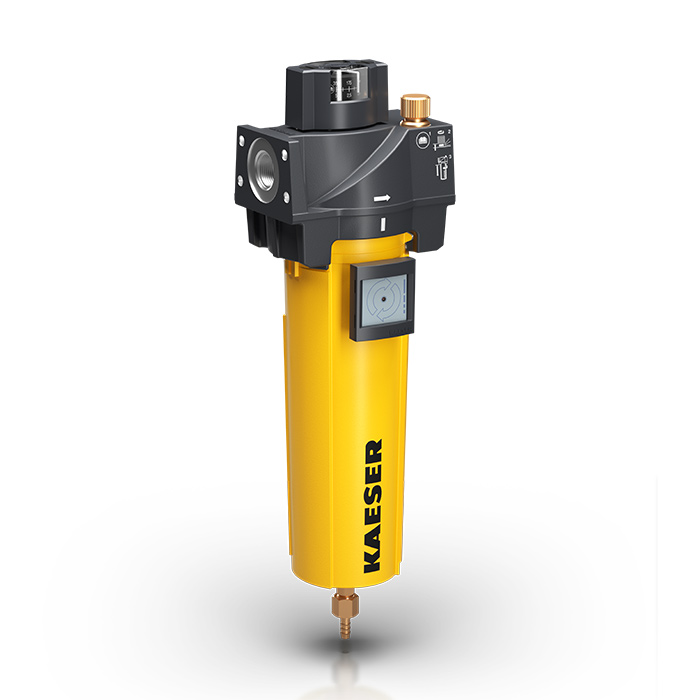

![[102119.10411] KAESER Filter Extra model F26KE G 1", Float drain](/web/image/product.template/262300/image_128/%5B102119.10411%5D%20KAESER%20Filter%20Extra%20model%20F26KE%20G%201%22%2C%20Float%20drain?unique=3cc15d9)
|
Volumenstrom: 2,60 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³ |
546.21 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405342.0] KAESER mounting KIT connecting flange KF2.2](/web/image/product.template/226606/image_128/%5B405342.0%5D%20KAESER%20mounting%20KIT%20connecting%20flange%20KF2.2?unique=7085d25)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
41.17 € | |
![[4E0520.0] KAESER KIT wall mount filter KF2.2](/web/image/product.template/234770/image_128/%5B4E0520.0%5D%20KAESER%20KIT%20wall%20mount%20filter%20KF2.2?unique=ef71e09)
|
KIT Wall bracket for KAESER compressed air filters |
73.78 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[8.2474.01550] KAESER ECO-DRAIN 30 service unit](/web/image/product.template/16932/image_128/%5B8.2474.01550%5D%20KAESER%20ECO-DRAIN%2030%20service%20unit?unique=7085d25)
|
Für Kondensatableiter KAESER ECO-DRAIN 30 |
167.79 € | |
![[901507.0] KAESER Filter element E110KB](/web/image/product.template/16500/image_128/%5B901507.0%5D%20KAESER%20Filter%20element%20E110KB%20%20?unique=ef71e09)
|
Filterelement für KAESER Filter Basic Modell F110KB |
583.10 € | |
