KAESER Filter Extra model F142KE G 2", ECO-DRAIN 30
Volumenstrom: 14,20 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
MDM500011973Category :
Compressed Air FiltersWeight :
11.10 kgDelivery area :
DeutschlandDer KAESER Koaleszenzfilter Extra bietet die gleiche effektive Filtration wie das Modell KB, jedoch für eine noch höhere Druckluftqualität. Er entfernt zuverlässig Feststoff- und Flüssig-Aerosole sowie Feinstpartikel und schützt so Ihre Druckluftsysteme optimal.
| Volume flow (m³/min) | 14,20 |
| Compressed air inlet connection | G 2" |
| Differential pressure in new condition | <0,05 |
| Differential pressure at saturation | <0,2 |
| Residual aerosol content | <0,01 |
| Min. overpressure | 2 |
| Max. Overpressure | 16 |
| Weight (kg) | 11,1 |
| Width (mm) | 257 |
| Height (mm) | 842 |
| Depth (mm) | 234 |
| Condensate drain | ECO-DRAIN 30 |
| Degree of filtration | KE - Coalescence filter Extra |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[MDM500199884] KAESER Filter Extra model F142KE G 2", Ball valve](/web/image/product.template/262481/image_128/%5BMDM500199884%5D%20KAESER%20Filter%20Extra%20model%20F142KE%20G%202%22%2C%20Ball%20valve?unique=4bdfd11)
|
Volumenstrom: 14,20 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³ |
1,505.65 € | |

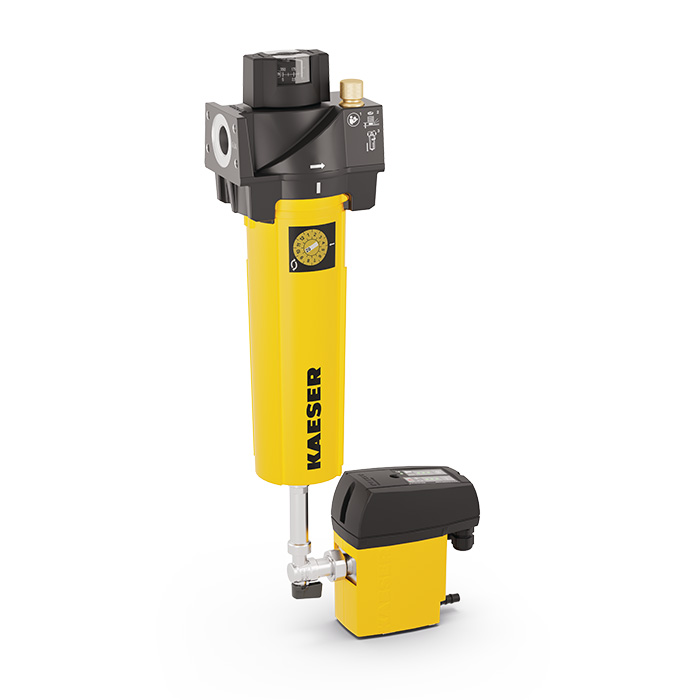

![[102132.20741] KAESER Filter Extra model F142KE G 2", ECO-DRAIN 31F](/web/image/product.template/262342/image_128/%5B102132.20741%5D%20KAESER%20Filter%20Extra%20model%20F142KE%20G%202%22%2C%20ECO-DRAIN%2031F?unique=01a6b32)
|
Volumenstrom: 14,20 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³ |
1,811.78 € | |

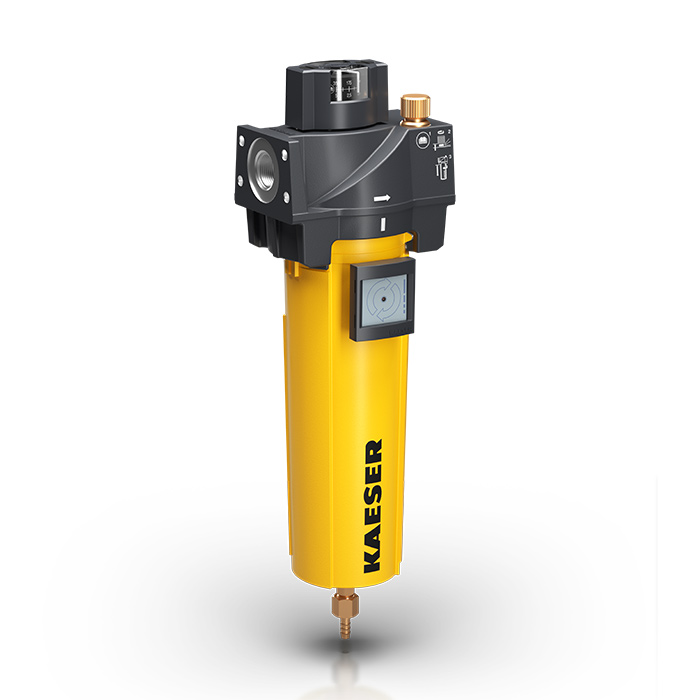

![[102132.10711] KAESER Filter Extra model F142KE G 2", Float drain](/web/image/product.template/262341/image_128/%5B102132.10711%5D%20KAESER%20Filter%20Extra%20model%20F142KE%20G%202%22%2C%20Float%20drain?unique=4bdfd11)
|
Volumenstrom: 14,20 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³ |
1,505.65 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405343.0] KAESER Mounting KIT connecting flange KF3.2](/web/image/product.template/226216/image_128/%5B405343.0%5D%20KAESER%20Mounting%20KIT%20connecting%20flange%20KF3.2?unique=a4f8856)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
45.82 € | |
![[4E0521.0] KAESER Wall holder filter kit KF3.2](/web/image/product.template/234633/image_128/%5B4E0521.0%5D%20KAESER%20Wall%20holder%20filter%20kit%20KF3.2?unique=01a6b32)
|
KIT Wall bracket for KAESER compressed air filters |
104.72 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

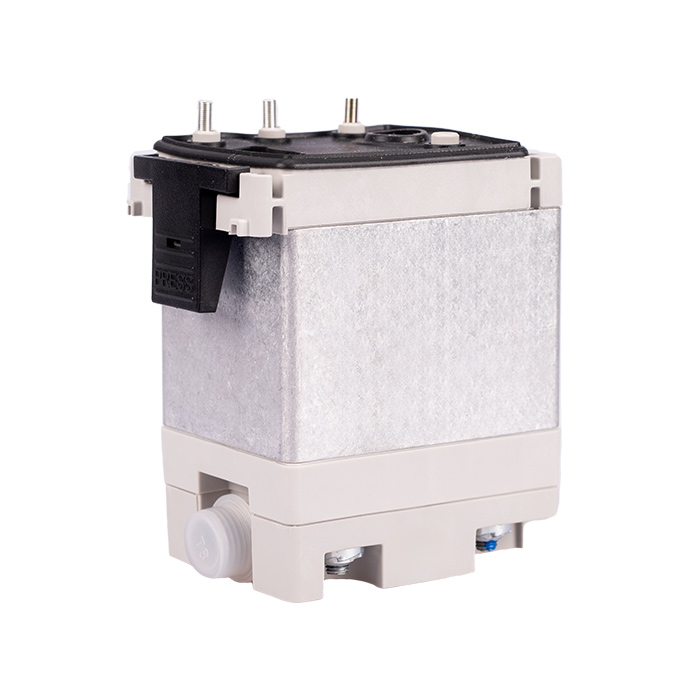

![[8.2474.01550] KAESER ECO-DRAIN 30 service unit](/web/image/product.template/16932/image_128/%5B8.2474.01550%5D%20KAESER%20ECO-DRAIN%2030%20service%20unit?unique=2b8a7c4)
|
Für Kondensatableiter KAESER ECO-DRAIN 30 |
167.79 € | |
![[901507.0] KAESER Filter element E110KB](/web/image/product.template/16500/image_128/%5B901507.0%5D%20KAESER%20Filter%20element%20E110KB%20%20?unique=01a6b32)
|
Filterelement für KAESER Filter Basic Modell F110KB |
597.38 € | |
