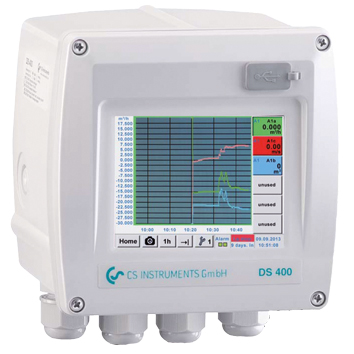

CS INSTRUMENTS Paperless recorder DS 400
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Compact compressed air monitoring - 3.5" touchscreen, 4 inputs
The CS Instruments the DS 400 is the compact data recorder and data logger for monitoring individual compressed air system components. The 3.5" touchscreen display shows all measured values at a glance. Standard: 2 digital inputs FA 5xx or VA 5xx (FA and VA series), 2 alarm relays, USB interface. Optionally expandable with 2 additional sensor inputs (4-20 mA, 0-10 V, Pt100), data logger (100 million measured values start/stop time, measuring rate freely adjustable), Ethernet and web server.
Application areas
The DS 400 is ideal for monitoring individual dryers, compressors or filter stages. Connect Dew point measurement-Sensors of the FA series or Consumption measurement-VA series sensors directly - the integrated power supply unit also powers the sensors. In a wall or control cabinet housing (IP 54). Accessories such as connection cables can be found at FILCOM.
| Power supply | 100...240 VAC, 50-60 Hz |
| Dimensions | 118 x 115 x 98 mm IP 54 (wall-mounted housing); 92 x 92 x 75 mm (switch cabinet installation) |
| Inputs | 2 digital inputs FA 5xx or VA 5xx |
| Interface | USB interface |
| Alarm outputs | 2 relays, (potentiometer-free) |
| Data logger options | 100 million measured values Start/stop time, measuring rate freely adjustable |
| 2 additional sensor inputs | For connecting pressure sensors, temperature sensors, current clamps, external sensors with 4...20 mA, 0-10 V, Pt 100, Pt 1000 |
