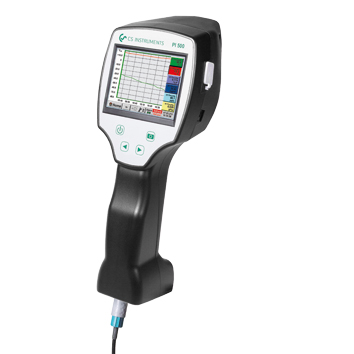

CS INSTRUMENTS Portable hand-held measuring device model PI 500, incl. data logger, incl. plug-in power supply unit
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Portable handheld measuring device - 3.5" touchscreen, 16 GB data logger
The CS Instruments PI 500 is a portable handheld measuring device with 3.5″ TFT transmissive touch panel, graphics, curves, statistics and integrated data logger (16 GB). It serves as a universal display and recording unit for all CS Instruments sensors - whether dew point, flow, pressure or temperature. Internally rechargeable Li-Ion batteries, charging time approx. 4 h, PI 500; continuous operation > 4 h depending on power consumption for ext. sensor, compact housing (82 x 96 x 245 mm), USB interface.
Application areas
The PI 500 is suitable for mobile measuring tasks, commissioning and service assignments. In combination with Dew point measurement-Sensors, Consumption measurement-Sensors or Pressure sensors you have a portable complete system for every measuring task.
| Power supply | Internally rechargeable Li-Ion batteries, charging time approx. 4 h, PI 500; continuous operation > 4 h depending on power consumption for ext. sensor |
| EMC | DIN EN 61326 |
| Operating temperature (°C) | 0...50 |
| Dimensions | 82 x 96 x 245 mm |
| Housing | PC/ABS |
| Display | 3.5″ touch panel TFT transmissive, graphics, curves, statistics |
| Interface | USB interface |
| Weight (kg) | 0,450 |
| Storage temperature | -20...70 |
| Voltage supply for sensors | Output voltage: 24 VDC ± 10%; output current: 120 mA in continuous operation |
| Power supply unit | 100 - 240 VAC/50 - 60 Hz, 12 VDC - 1A, safety class 2 for use in dry rooms only |
| Memory capacity | 16 GB - Standard memory card |
