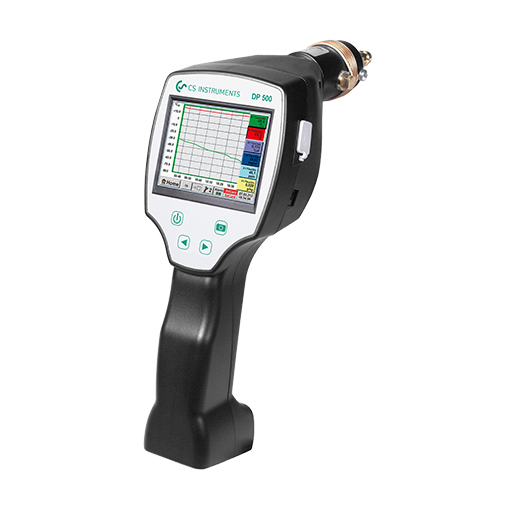

CS INSTRUMENTS Mobile dew point meter model DP 500 in case
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Mobile dew point meter - -80...20 °Ctd
The CS Instruments DP 500 is a mobile dew point measuring device for service technicians and maintenance engineers who need to check the pressure dew point quickly and precisely on site. In a sturdy carrying case with measuring device, 3.5" touchscreen, measuring chamber with quick coupling and complete accessories. The integrated data logger stores up to 100 million measured values on a 16 GB SD card. All measured humidity values (g/m³, mg/m³, ppm, %rh, °Ctd) are calculated automatically.
Application areas
The DP 500 is suitable for mobile dew point testing on dryers, commissioning of new systems and standard-compliant documentation of compressed air quality. For stationary continuous monitoring, we recommend the Dew point measurement-FA series sensors. Accessories such as additional measuring chambers can be found at FILCOM.
| Measuring range | -80...20 °Ctd, -60...30 °Ctd, -20...50 °Ctd, or 0...100% rH |
| Pressure range (bar) | -1...50 bar standard / -1...350 bar special version |
| Display | 3.5″ touchscreen |
| Data logger | 16 GB SD memory card (100 million values) |
| Power supply | Internally rechargeable Li-Ion batteries approx. 12 h continuous operation, 4 h charging time |
| Interface | USB interface |
| Power supply | Output voltage: 24 VDC ± 10% Output current: 120 mA in continuous operation |
| Screw-in thread | G 1/2″ stainless steel |
| Ambient temperature (°C) | 0…+50 °C |
| EMC | DIN EN 61326-1 |
| Accuracy | ± 0.5 °Ctd at -10...+50 °Ctd Typ. ± 2 °Ctd (remaining range) |
