CS INSTRUMENTS Dew Point Monitoring DS 52 for Adsorption Dryers
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Dew point monitoring for adsorption dryers - LED, 2 alarm relays
The CS Instruments DS 52 is a compact dew point monitoring unit especially for adsorption dryers. The LED display (7-segment, 5-digit) clearly shows the current dew point value. 2 freely adjustable alarm relays warn if limit value is exceeded. 4-20 mA input for FA series dew point sensors. Power supply 230 VAC (optionally 24 VDC or 110 VAC). Compact housing: 118 x 92 x 93 mm.
Application areas
The DS 52 is suitable as a simple and cost-effective monitoring solution for individual dryers. In combination with a Dew point measurement-Sensor from the FA series creates a complete monitoring system. For more extensive requirements, we recommend the Screen recorder DS 400 or DS 500.
| Dimensions W x D X H (mm) | 118 x 92 x 93 |
| Display | LED red, 7-segment, height: 13 mm, 5-digit, 2 LEDs for alarm relay |
| Keyboard | 4 buttons |
| Entrance | 4....20 mA |
| Power supply | 230 VAC, 50/60 Hz; Option: 24 VDC or 110 VAC 50/60 Hz |
| Alarm outputs | 2 x relay output, changeover contact, 250 VAC, max. 3 A |
| Operating temperature | -10...+60 °C (storage temperature -20 °C...+80 °C) |
| Alarm limits | freely adjustable |
| Hysteresis | 2 °Ctd |
| Analogue output | 4...20 mA = -80...20 Ctd. |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

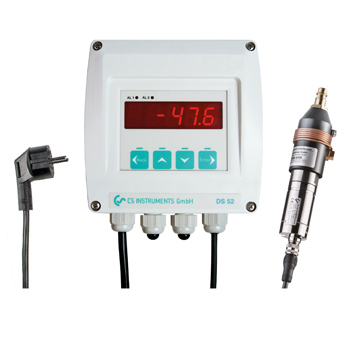

![[0600 5120] CS INSTRUMENTS Dew point monitoring DS 52 for refrigeration dryers](/web/image/product.template/111422/image_128/%5B0600%205120%5D%20CS%20INSTRUMENTS%20Dew%20point%20monitoring%20DS%2052%20for%20refrigeration%20dryers?unique=c7e4929)
|
2,003.96 € | ||
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[0553 0104] CS INSTRUMENTS Connection cable for VA/FA series](/web/image/product.template/111379/image_128/%5B0553%200104%5D%20CS%20INSTRUMENTS%20Connection%20cable%20for%20VA-FA%20series?unique=9c5e356)
|
69.02 € | ||

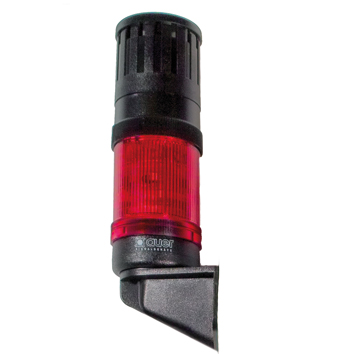

![[Z500 0003] CS INSTRUMENTS alarm pillar mounted on wall housing](/web/image/product.template/111410/image_128/%5BZ500%200003%5D%20CS%20INSTRUMENTS%20alarm%20pillar%20mounted%20on%20wall%20housing?unique=80ce9b1)
|
