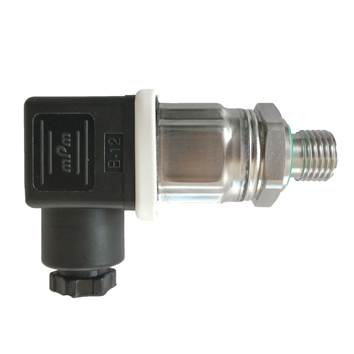

CS INSTRUMENTS Precision pressure probe CS100 accuracy ± 0.5 %
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Precision pressure probe - 0...100 bar, ± 0.5 %
The CS Instruments Precision pressure probe CS100 monitors the system pressure in compressed air systems reliably and precisely. Measuring range 0...100 bar, accuracy ± 0.5 % of final value. 4-20 mA two-wire technology (8-30 VDC), protection class IP 65, process connection G 1/4. Media temperature up to +125 °C, long-term stability ±0.2 % FS/year. Manufactured by CS Instruments in the Black Forest.
Application areas
The pressure probe is suitable for pressure monitoring on compressors, dryers, filters and in the pipe network. It can also be used as a differential pressure probe for filter monitoring. In combination with a Screen recorder pressure curves are recorded over the long term. Accessories can be found at FILCOM.
| Range | 0...100 bar |
| Accuracy | ± 0.5% |
| Long-term stability | ±0.2% FS/ year |
| Temperature range (°C) | -40...125 |
| Protection class | IP 65 |
| Power supply | 8....30 VDC |
| Components with media contact | 316 L, 304 |
| Process connection | G 1/4 |
