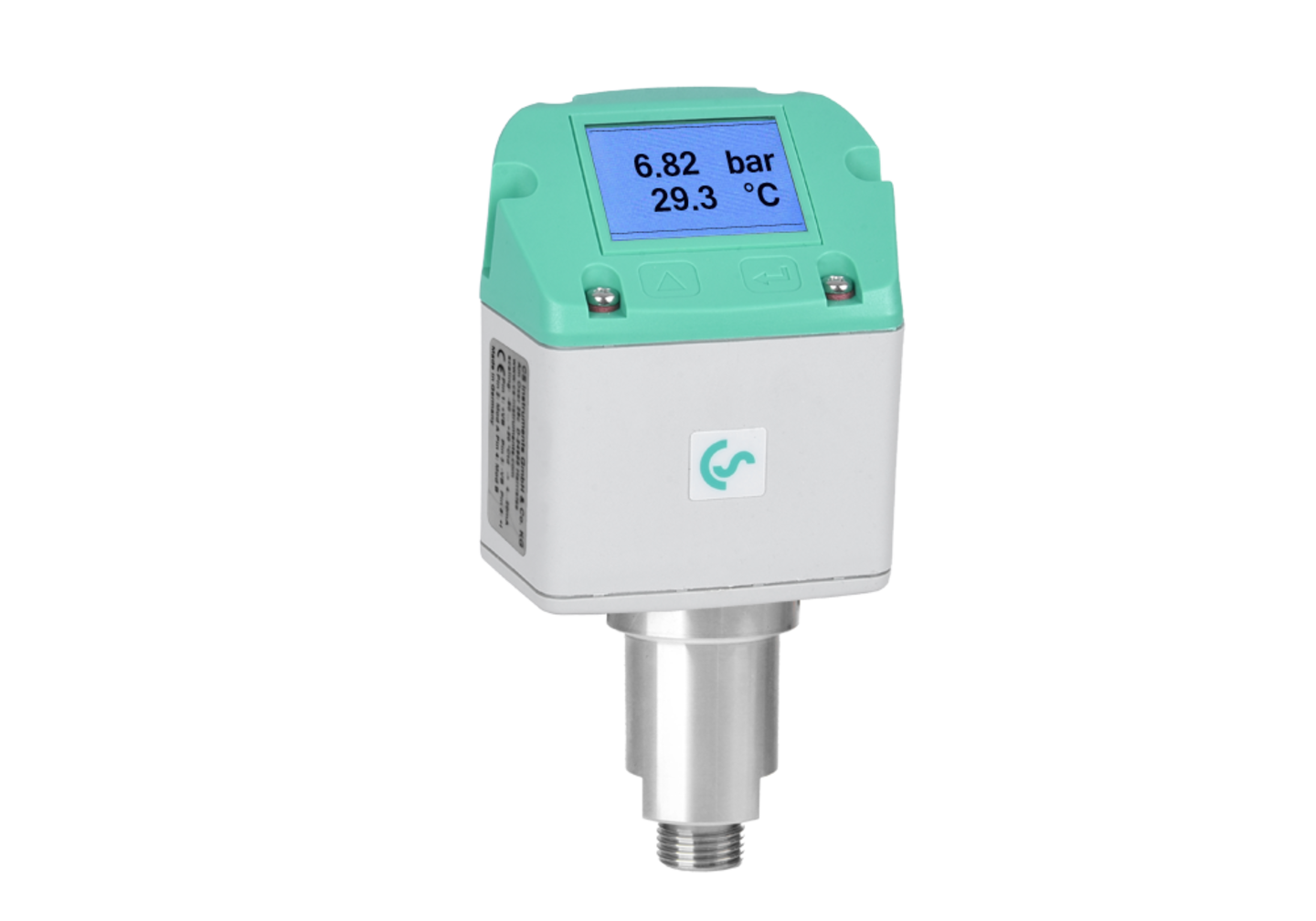

CS INSTRUMENTS PTS 500 Pressure/temperature sensor, 0...50 bar, G1/2", Ethernet interface (Modbus/TCP), 1 x 4...20 mA analog output, RS 485
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Pressure and temperature sensor - 0...50 bar, Ethernet
The CS Instruments PTS 500 is a combination sensor for pressure and temperature in a compact housing. Measuring range pressure: 0...50 bar, measuring range temperature: -20...+125 °C. Process connection G1/2", protection class IP 65. Interfaces: Ethernet (Modbus/TCP). Pressure and temperature can be read out in various units via Modbus.
Application areas
The PTS 500 is suitable for the simultaneous monitoring of pressure and temperature on compressors, dryers and in the compressed air network. In combination with a Screen recorder a seamless monitoring system is created. Accessories can be found at FILCOM.
| Temperature measuring range (°C) | -20...125 |
| Accuracy | ± 1.0°C (-10...+50°C) |
| Power supply | 18....36 VDC via SELV supply, 5W or Power over Ethernet (IEEE802.3af: Class 2 (3.84W - 6.49W) |
| Protection class (IP) | 65 |
| Ambient temperature (°C) | -20... +60 |
| Storage temperature (°C) | -40... +80 |
| Readable via Modbus | Pressure [hPa, mbar, bar, psi,...] Temperature [°C, °F] |
| Operating temperature (°C) | -20...+125 for pressure sensor |
