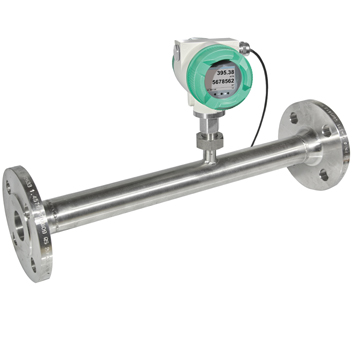

CS INSTRUMENTS VA 570 Flow/consumption sensor, with integrated DN 25 measuring section
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Flow and consumption sensor - DN 25 measuring section
The CS Instruments VA 570 is a thermal flow sensor with integrated DN 25 measuring section. It records volume flow, consumption and temperature in compressed air and gases. Display, totalizer, 4-20 mA, pulse and RS 485 (Modbus-RTU) are integrated as standard. Measuring dynamics up to 1:1000, bidirectional measurement possible.
Application areas
The VA 570 is suitable for recording consumption on compressors, distributors and individual production lines. In conjunction with a Screen recorder creates a seamless compressed air monitoring system. Accessories can also be found at FILCOM.
| Measuring range | up to 50 Nm/s, Low-Speed Version*; up to 92.7 Nm/s, Standard Version*; up to 185 Nm/s, Max. Version*; up to 224 Nm/s, high-speed version*; * Measuring range Nm³/h for different pipe diameters and gases, see table Measuring ranges flow rate; * All measured values based on DIN 1343 standard conditions 0° and 1013 mbar ex works |
| Protection class | IP 67; IP64 for ATEX II 2D Ex tb IIIC T90°C Db |
| Outputs | Standard: 1 x 4...20 mA analog output (not galvanically isolated), pulse output, RS 485 (Modbus-RTU) Optional: 2 x 4...20 mA active, Modbus TCP, HART, Profibus DP, Profinet, MBus |
| Burden | < 500 Ω |
| Material | Housing die-cast aluminum, sensor tube stainless steel 1.4404 |
| Operating temperature (°C) | -20...70 |
| Accuracy (v. M. = from measured value) (v. E. |
± 1.5 % of the average ± 0.3 % of the average on request: ± 1 % of the average ± 0.3 % of the average |
| Operating pressure (bar) | 16, in special version 40 |
| Supply | 18...36 VDC, 5 W |
| Accuracy specifications | based on ambient temperature 22 °C ± 2 °C, system pressure 6 bar |
| Measuring principle | Thermal mass flow sensor |
| Repeatability | 0.25 % of weight with correct installation (installation aid, position, inlet section) |
| Response time | t90 < 3 s |
| Media temperature range | -20 .... 180 (ATEX version: -20 ... 120) |
| Setting options via display, external handheld PI 500, PC service software, remote diagnostics | Nm³/h, Nm³/min, Nl/min, l/s, ft/min, cfm, kg/h, kg/min, internal diameter, reference conditions °C/°F, mbar/hPa, zero point correction, creep suppression, scaling analog output 4...20 mA, pulse/alarm, error codes, etc. |
| Approval | ATEX II 2G Ex db IIC T4 Gb; ATEX II 2D Ex tb IIIC T90°C Db; DVGW |
| Additional mean value calculation | freely adjustable across all measured variables from 1 minute to 1 day, e.g. 1/2 hour average value, daily average value |
