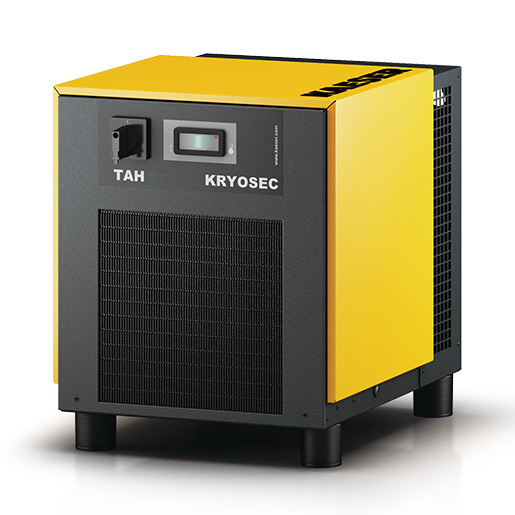

KAESER Refrigeration dryer model KRYOSEC TAH 10
Volume flow: 0.80 (m³/min) | Pressure dew point: 3 (°C) | Refrigerant: R-513A
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER refrigeration dryer (hot gas bypass control)
KRYOSEC - Compact refrigeration dryers for reliable drying
KRYOSEC refrigeration dryers offer high-quality industrial quality "Made in Germany". They ensure reliable compressed air drying at ambient temperatures of up to +50 °C. With low pressure loss and low-maintenance design, they are economical to operate and are characterized by their compact size. The KRYOSEC refrigeration dryers cool the humid compressed air in a high-quality heat exchanger system made of stainless steel plates. The electronic condensate drain ECO-DRAIN ensures efficient condensate disposal. With their high-quality design and compact dimensions, they are ideal for decentralized installations on machines that require high-quality treated compressed air.
Performance parameters for KRYOSEC:
- Volume flow: 0.35 to 4.50 m³/min
- Operating pressure: max. 16 bar
with climate-friendly refrigerant R513a
Low differential pressure
Low overall height and high floor clearance
Matching: the AQUAMAT oil/water separator
Treat condensate with the AQUAMAT oil-water separator before discharging it into the sewage system in a legally compliant and cost-effective manner.
| Volume flow (m³/min) | 0,80 |
| Pressure dew point (°C) | 3 |
| Pressure loss (bar) | 0,15 |
| Electrical power consumption at 100% Vol. (kW) | 0,19 |
| Min. overpressure (bar) | 3 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | 3 |
| Max. Ambient temperature (°C) | 50 |
| Max. Compressed air inlet temperature (°C) | 60 |
| Width (mm) | 386 |
| Depth (mm) | 473 |
| Height (mm) | 440 |
| Compressed air connection | G 1/2 |
| Condensate drain connection | G 1/4 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,21 |
| CO2 equivalent (tonnes) | 0,13 |
| Global warming potential GWP | 631 |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

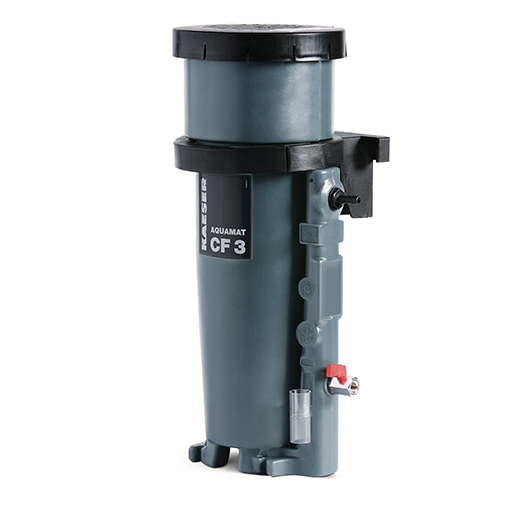

![[5.3390.0] KAESER Oil-water separator model Aquamat CF 3](/web/image/product.template/3688/image_128/%5B5.3390.0%5D%20KAESER%20Oil-water%20separator%20model%20Aquamat%20CF%203%20?unique=c434b24)
|
The KAESER AQUAMAT CF 3 enables legally compliant condensate treatment up to 1.9 m³/min. Save up to 90 % on disposal costs thanks to efficient oil-water separation directly at the point of origin.
|
505.75 € | |

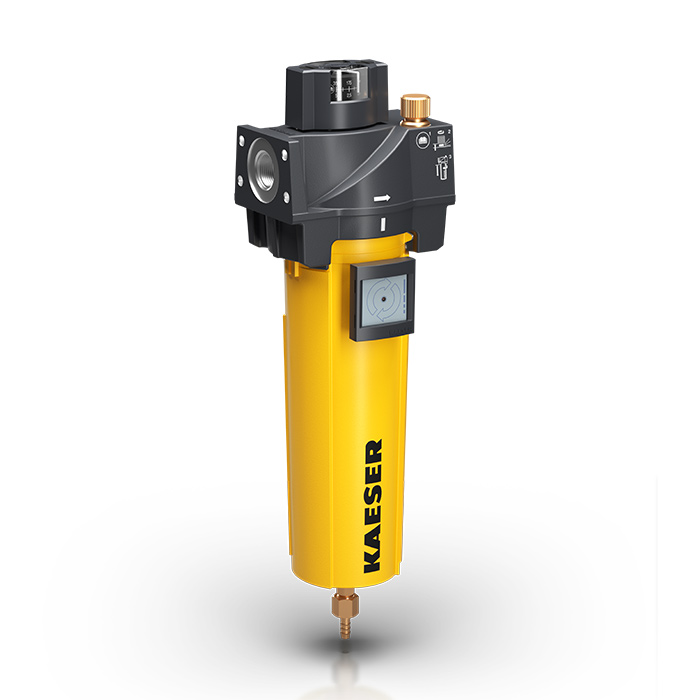

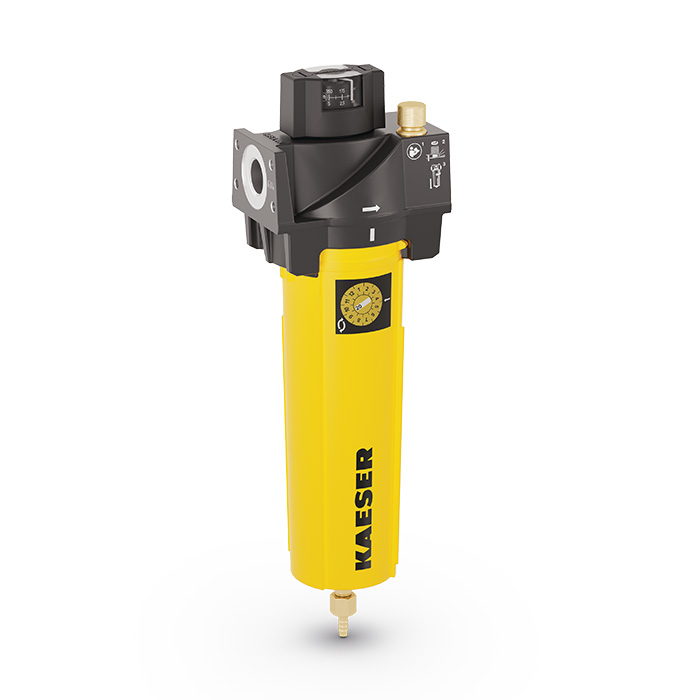

![[102107.10211] KAESER Filter Extra model F9KE G 1/2", Float drain](/web/image/product.template/262265/image_128/%5B102107.10211%5D%20KAESER%20Filter%20Extra%20model%20F9KE%20G%201-2%22%2C%20Float%20drain?unique=f71ff6a)
|
