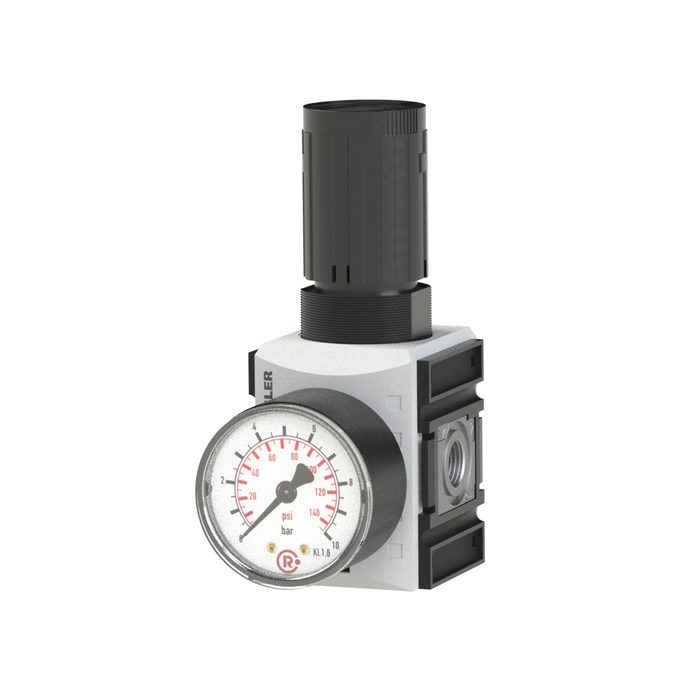

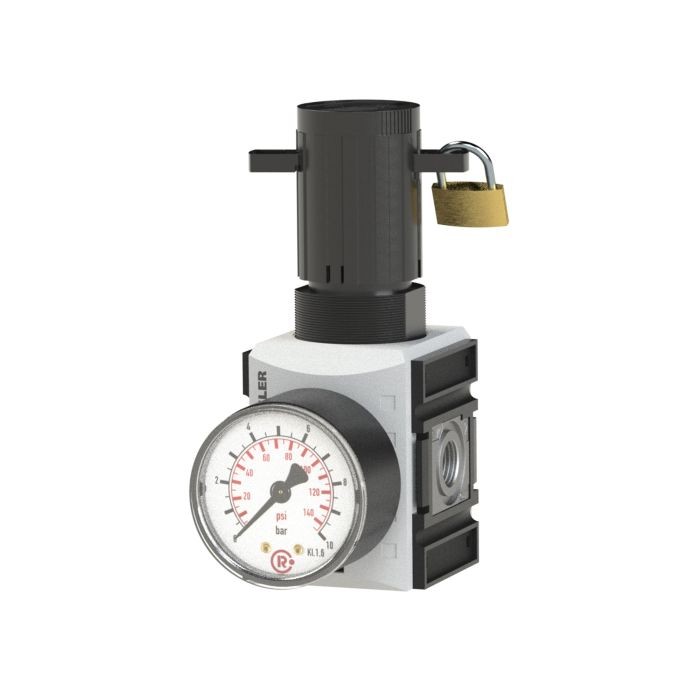

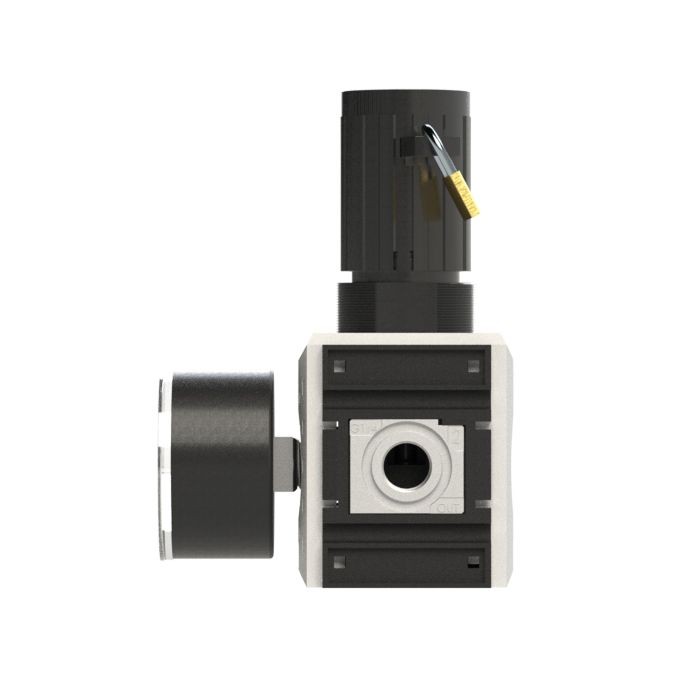

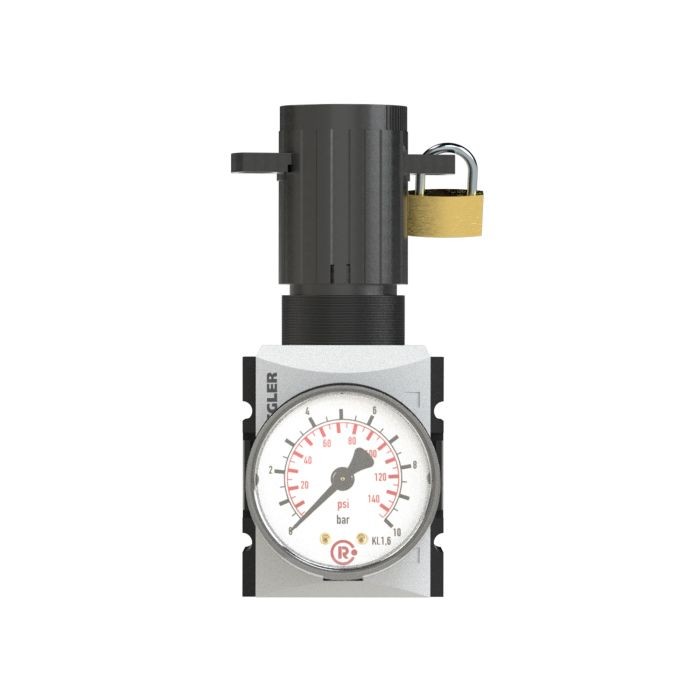

Riegler Precision pressure regulator »FUTURA«, Size 1, G 1/4, 0.1 - 1 bar
Type number: FU 7601
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Precision pressure regulator made of PA66 GF60, for compressed air preparation, 0.1 bar - type FU 7601
The RIEGLER precision DDR, continuous Pressure Vers. "FUTURA", BG 1, G 1/4, 0.1-1 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.1 bar to 1 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 2.6 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1/4 |
| Control range min. | 0.1 bar |
| Control range max. | 1 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 1.6 bar |
| BG | 1 |

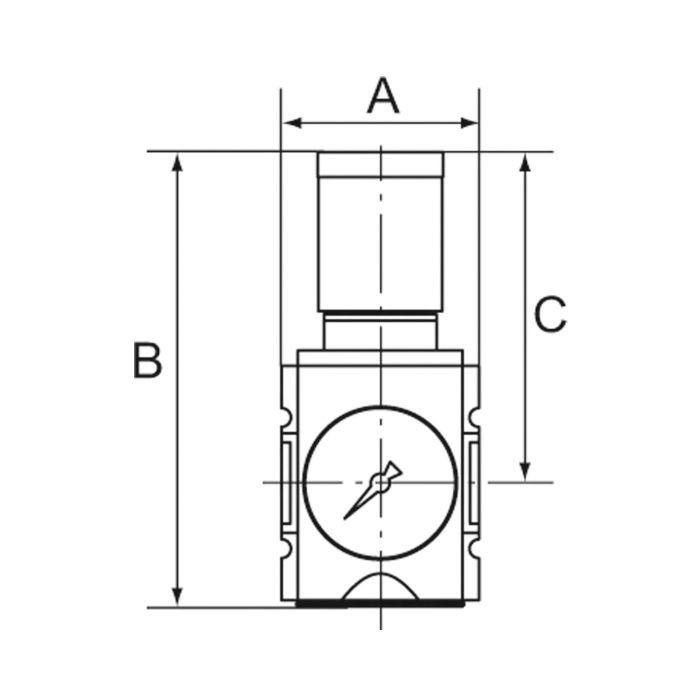

| A | 52 mm |
| B | 129 mm |
| C | 96 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 2200 l/min |
| SCIP message number Supplier | 5f647055-e8e1-42d5-8f66-48efe7643a3e |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

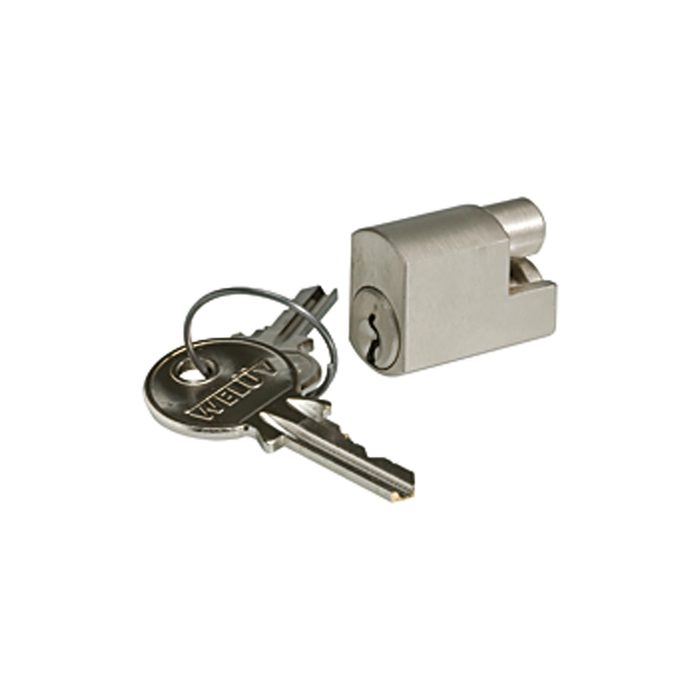

![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=f92ff32)
|
Type number: SS 32 |
43.95 € | |

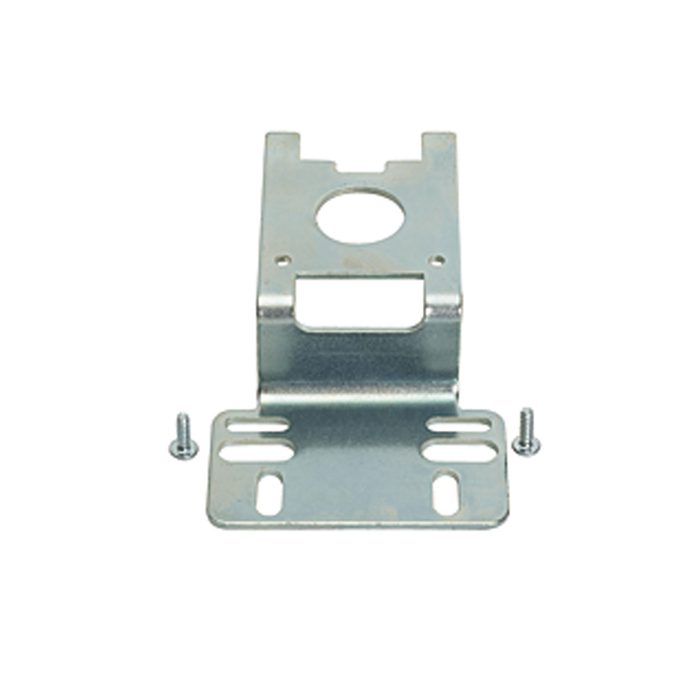

![[100038] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 1](/web/image/product.template/118200/image_128/%5B100038%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=af0fbfa)
|
Type number: H 850 |
6.82 € | |

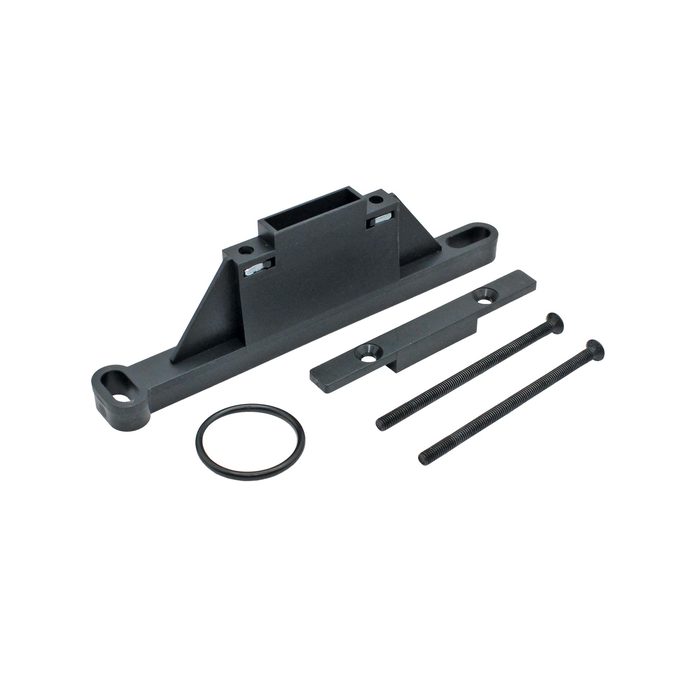

![[100039] RIEGLER Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118201/image_128/%5B100039%5D%20RIEGLER%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=91222d8)
|
Type number: WK 100 |
3.37 € | |
![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=7a38eac)
|
Type number: KP 100 |
2.05 € | |

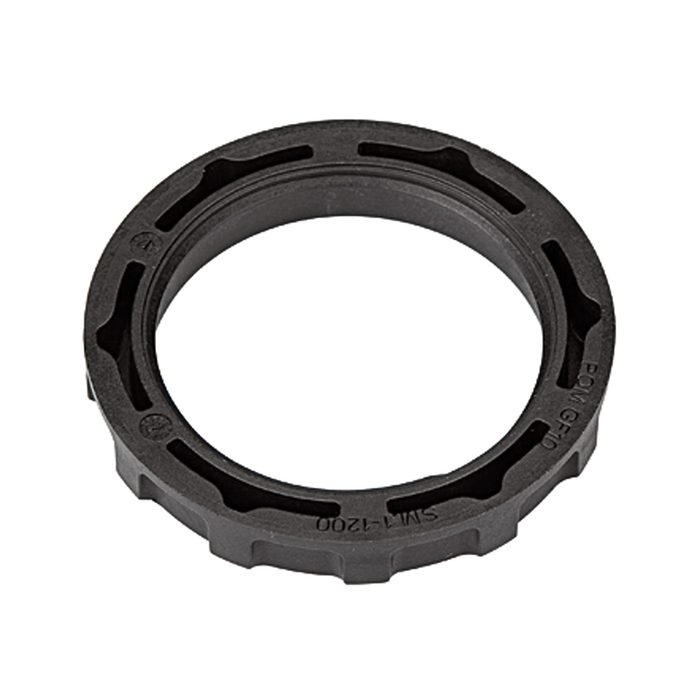

![[100041] Riegler Control panel nut M36x1.5, for »FUTURA«, Size 1, G 1/4 and G 3/8](/web/image/product.template/118203/image_128/%5B100041%5D%20Riegler%20Control%20panel%20nut%20M36x1.5%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=b401a08)
|
Type number: FU 11-55 |
1.00 € | |
![[135851] RIEGLER Wall console with connection thread G 1/4, for »FUTURA«, Size 1](/web/image/product.template/206208/image_128/%5B135851%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=e874eb5)
|
Type number: WK 101-14 |
29.45 € | |
![[135852] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 1](/web/image/product.template/206209/image_128/%5B135852%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=9291427)
|
Type number: WK 101-38 |
29.45 € | |

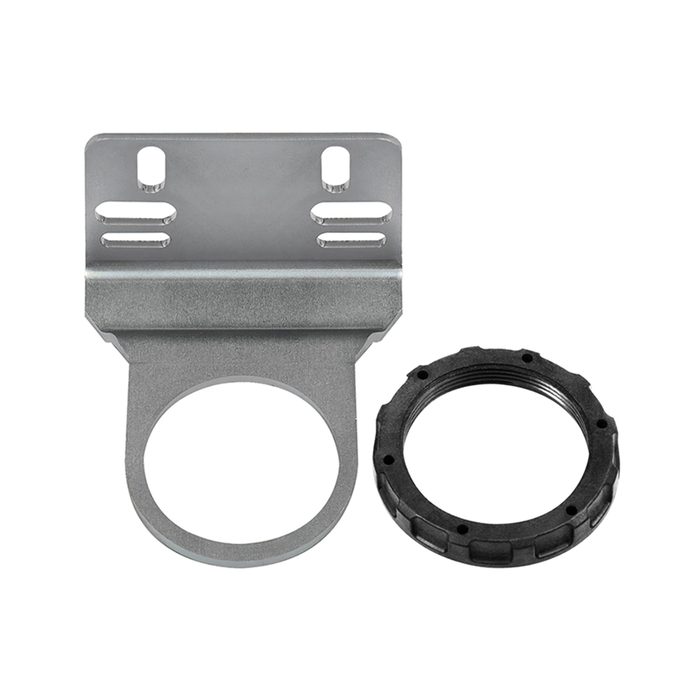

![[152945] RIEGLER Mounting bracket with control panel nut M36x1.5, »FUTURA«, Size 1](/web/image/product.template/212484/image_128/%5B152945%5D%20RIEGLER%20Mounting%20bracket%20with%20control%20panel%20nut%20M36x1.5%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=e9d712b)
|
Typennummer: H 851 |
6.24 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

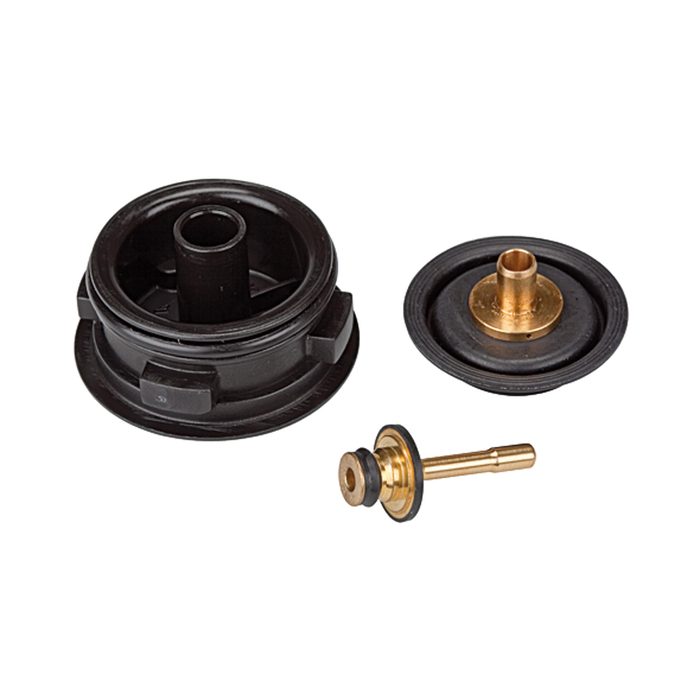

![[100096] Riegler Seal set for precision pressure regulator »FUTURA«, Size 1](/web/image/product.template/121997/image_128/%5B100096%5D%20Riegler%20Seal%20set%20for%20precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=52c6be1)
|
Type number: 22.7410.4 |
15.09 € | |
