Precision Pressure Regulator, Continuous Pressure Supply FUTURA, BG 1, G 1/4, 0.5–8 bar
Part Number: 843.010-6 ES FDA
EAN: 4047322191449
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Precision Pressure Regulator Made of PA66 GF60 – Model FU 7608
The RIEGLER precision pressure regulator, full-range pressure version “FUTURA,” BG 1, G 1/4, 0.5–8 bar, impresses with its high-quality workmanship and reliable performance. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 8 bar at a maximum inlet pressure of 16 bar. The permissible medium temperature ranges from -10 °C to 50 °C. G 1/4 connection—compatible with common industrial standards. The flow rate is 2,200 l/min. Suitable for compressed air and neutral gases. Stackable precision diaphragm pressure regulator with secondary venting, modern design, and excellent flow rates. When two or more regulators are connected in a block, a single common supply line can provide compressed air to multiple working air circuits at different pressures. Designed for reliable continuous use in industry and trade.
Scope of Application
Typical applications: Pressure regulators, pressure reducers, and fine-pressure regulators in compressed air and pneumatic systems.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 2.6 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1/4 |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 52 mm |
| B | 129 mm |
| C | 96 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 2200 l/min |
| SCIP message number Supplier | 2a72f31e-07e8-4823-98fd-2f83bd47574a |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

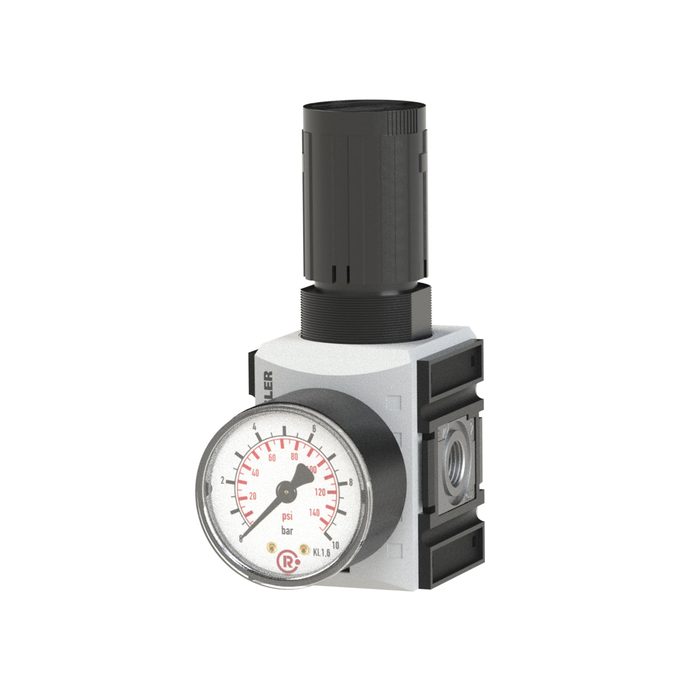

![[100098] Riegler Precision pressure regulator »FUTURA«, Size 1, G 1/4, 0.1 - 1 bar](/web/image/product.template/121999/image_128/%5B100098%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.1%20-%201%20bar?unique=eb60ca2)
|
