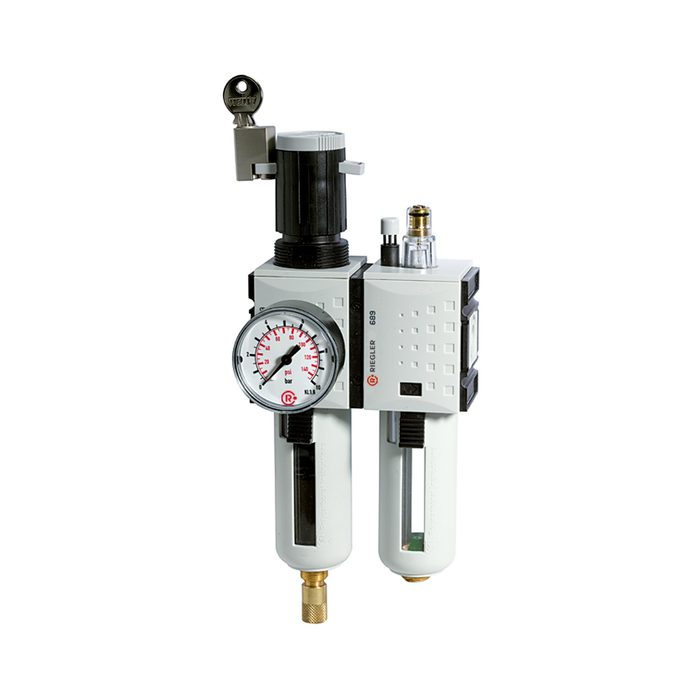

2-piece FUTURA Maintenance Unit, PC, BG 4, G 1, 0.5–8 bar, VA
Part Number: LDGNR38ES4408FDII
EAN: 4047322246019
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER "FUTURA" 2-piece maintenance unit made of PA66 GF60, for compressed air treatment – Type FU 616
The RIEGLER “FUTURA” 2-piece maintenance unit, PC, BG 4, G 1, 0.5–8 bar, VA combines filtration and pressure regulation in a compact, ready-to-connect unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 8 bar at a maximum inlet pressure of 16 bar. The permissible medium temperature ranges from -10 °C to 50 °C. G 1 connection—compatible with common industrial standards. The flow rate is 12,000 l/min. Filter rating: 5 µm; polycarbonate housing with protective cage. Suitable for compressed air and neutral gases. The diaphragm pressure regulator with secondary vent can be locked and sealed; oil can be refilled during operation. All components are designed to work together seamlessly and feature a maintenance-friendly design.
Scope of Application
Typical applications: Compressed air maintenance units, maintenance equipment, and FUTURA maintenance equipment in compressed air and pneumatic systems.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 1 |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 4 |
| A | 170 mm |
| B | 343 mm |
| C | 137 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 12000 l/min |
| SCIP message number Supplier | 17a67ad4-1056-487e-a015-53641f0f5e52 |
