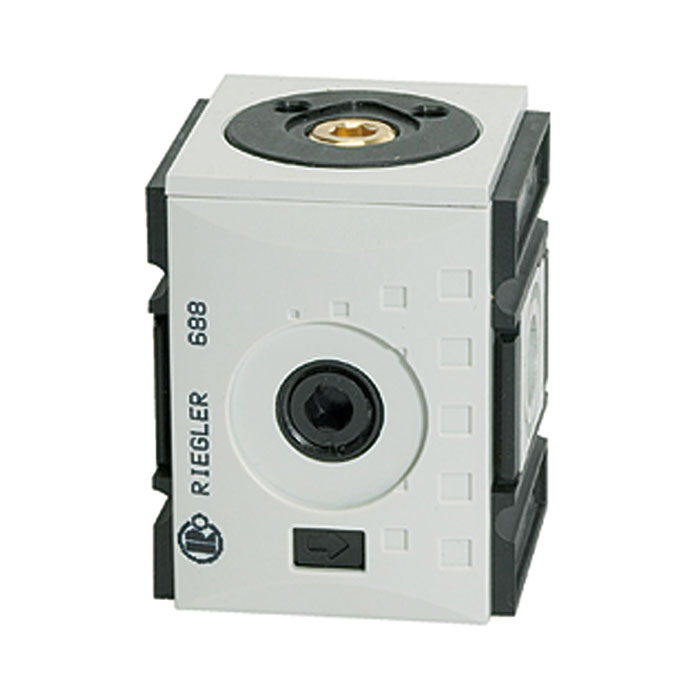

RIEGLER Distributor »FUTURA«, Size 2 G 3/8, Outlets 2xG 3/8, G 1/4, G 1/2
Type number: FU 943
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verteiler »FUTURA«, BG 2, G 3/8, Abgänge 2 x G 3/8, 1 x G 1/4, 1 x G 1/2, Eingangsdruck max. 16 bar, Temp. -10 °C bis 50 °C
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 3/8 |
| Flow rate | 7250 l/min |
| Departure | 2 x G 3/8, 1 x G 1/4, 1 x G 1/2 |
| BG | 2 |
| A | 63 mm |
| B | 80.5 mm |
| C | 43 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100274] RIEGLER Distributor »FUTURA«, Size 1, G 1/4, Outlets 3 x G 1/4](/web/image/product.template/132842/image_128/%5B100274%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20Outlets%203%20x%20G%201-4?unique=f5130ed)
|
Type number: FU 941 |
16.86 € | |
![[100275] RIEGLER Distributor »FUTURA«, Size 1, G 3/8, Outlets 3 x G 1/4](/web/image/product.template/132843/image_128/%5B100275%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%20Outlets%203%20x%20G%201-4?unique=c48b6a2)
|
Type number: FU 942 |
16.86 € | |
![[100277] RIEGLER Distributor »FUTURA«, Size 2 G 1/2, Outlets 2xG 3/8, G 1/4, G 1/2](/web/image/product.template/132845/image_128/%5B100277%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%202%20G%201-2%2C%20Outlets%202xG%203-8%2C%20G%201-4%2C%20G%201-2?unique=380aefb)
|
Type number: FU 944 |
20.94 € | |
![[100279] RIEGLER Distributor »FUTURA«, Size 4, G 1, Outlets 2 x G 3/4](/web/image/product.template/139714/image_128/%5B100279%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%201%2C%20Outlets%202%20x%20G%203-4?unique=ab31738)
|
Type number: FU 946 |
60.79 € | |
![[100278] RIEGLER Distributor »FUTURA«, Size 4, G 3/4, Outlets 2 x G 3/4](/web/image/product.template/138956/image_128/%5B100278%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%20Outlets%202%20x%20G%203-4?unique=afd6151)
|
Type number: FU 945 |
60.79 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

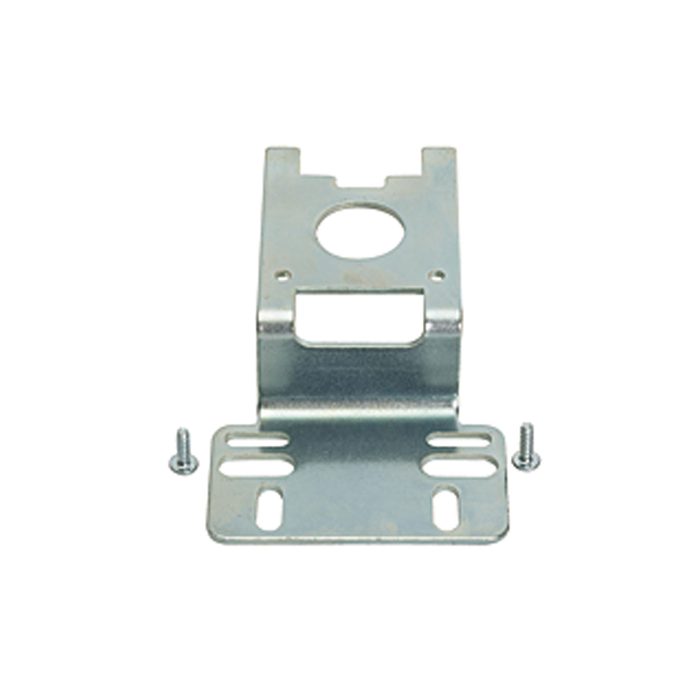

![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=58264d3)
|
Type number: H 852 |
10.22 € | |

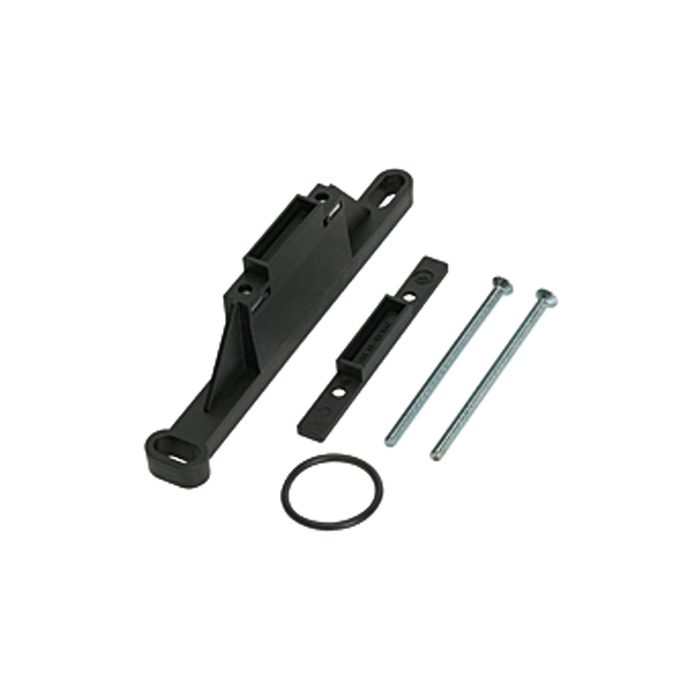

![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=8ca0a77)
|
