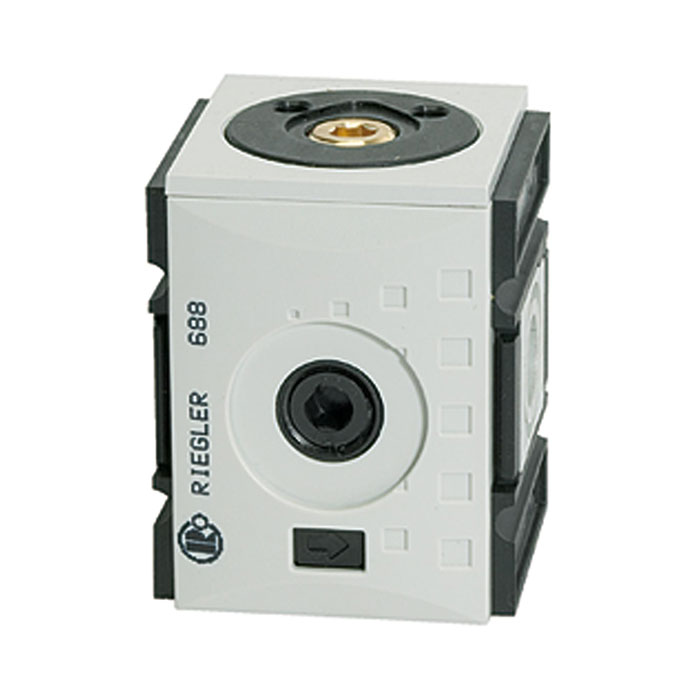

RIEGLER Distributor »FUTURA«, Size 4, G 1, Outlets 2 x G 3/4
Type number: FU 946
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER FUTURA" manifold made of PA66 GF60, for compressed air preparation, G 1 - type FU 946
The RIEGLER "FUTURA" manifold, BG 4, G 1, outlets 2 x G 3/4 expands maintenance systems modularly with additional functions. The housing is made of PA66 GF60. The maximum inlet pressure is 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 18000 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1 |
| Flow rate | 18000 l/min |
| Departure | 2 x G 3/4 |
| BG | 4 |
| A | 85 mm |
| B | 109.5 mm |
| C | 58.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100274] RIEGLER Distributor »FUTURA«, Size 1, G 1/4, Outlets 3 x G 1/4](/web/image/product.template/132842/image_128/%5B100274%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20Outlets%203%20x%20G%201-4?unique=0f275cc)
|
Type number: FU 941 |
16.86 € | |
![[100275] RIEGLER Distributor »FUTURA«, Size 1, G 3/8, Outlets 3 x G 1/4](/web/image/product.template/132843/image_128/%5B100275%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%20Outlets%203%20x%20G%201-4?unique=81e7727)
|
Type number: FU 942 |
16.86 € | |
![[100277] RIEGLER Distributor »FUTURA«, Size 2 G 1/2, Outlets 2xG 3/8, G 1/4, G 1/2](/web/image/product.template/132845/image_128/%5B100277%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%202%20G%201-2%2C%20Outlets%202xG%203-8%2C%20G%201-4%2C%20G%201-2?unique=c1c8161)
|
Type number: FU 944 |
20.94 € | |
![[100276] RIEGLER Distributor »FUTURA«, Size 2 G 3/8, Outlets 2xG 3/8, G 1/4, G 1/2](/web/image/product.template/132844/image_128/%5B100276%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%202%20G%203-8%2C%20Outlets%202xG%203-8%2C%20G%201-4%2C%20G%201-2?unique=f8b223a)
|
Type number: FU 943 |
20.94 € | |
![[100278] RIEGLER Distributor »FUTURA«, Size 4, G 3/4, Outlets 2 x G 3/4](/web/image/product.template/138956/image_128/%5B100278%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%20Outlets%202%20x%20G%203-4?unique=167ee0e)
|
Type number: FU 945 |
60.79 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

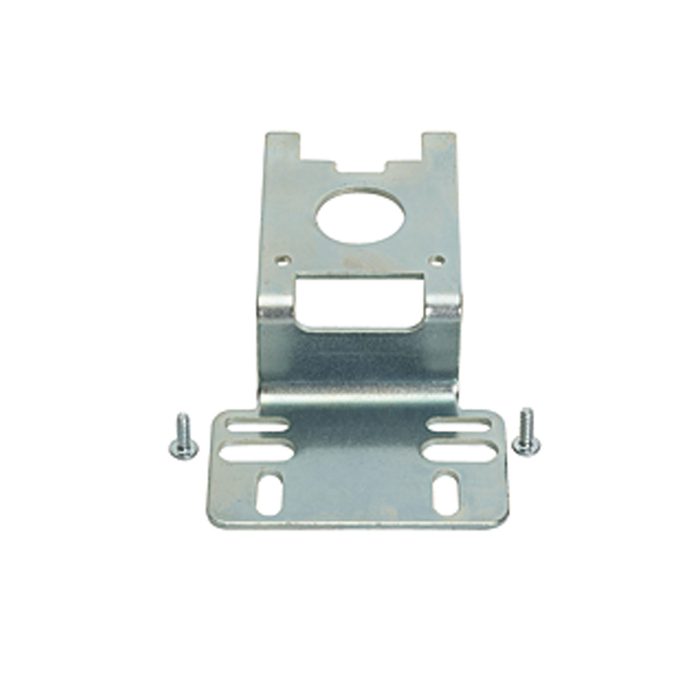

![[100048] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 4](/web/image/product.template/118210/image_128/%5B100048%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=8076cfc)
|
Type number: H 854 |
12.95 € | |

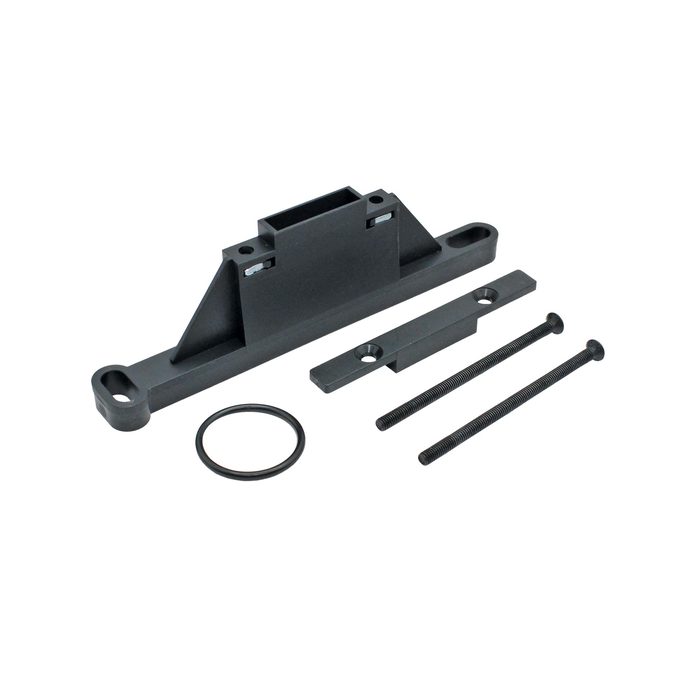

![[100049] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118211/image_128/%5B100049%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=8614bd5)
|
Type number: WK 103 |
6.18 € | |
![[100050] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118212/image_128/%5B100050%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=fa8e7d1)
|
Type number: KP 300 |
4.39 € | |

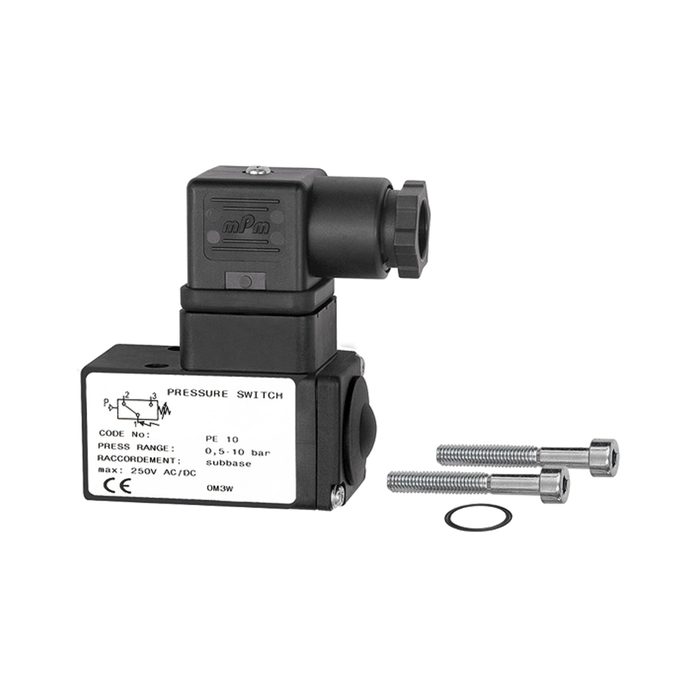

![[100280] RIEGLER Pressure switch changeover contact design flangeable, 0.5-10 bar](/web/image/product.template/139715/image_128/%5B100280%5D%20RIEGLER%20Pressure%20switch%20changeover%20contact%20design%20flangeable%2C%200.5-10%20bar?unique=b3a2790)
|
Type number: DS 9410 |
96.81 € | |

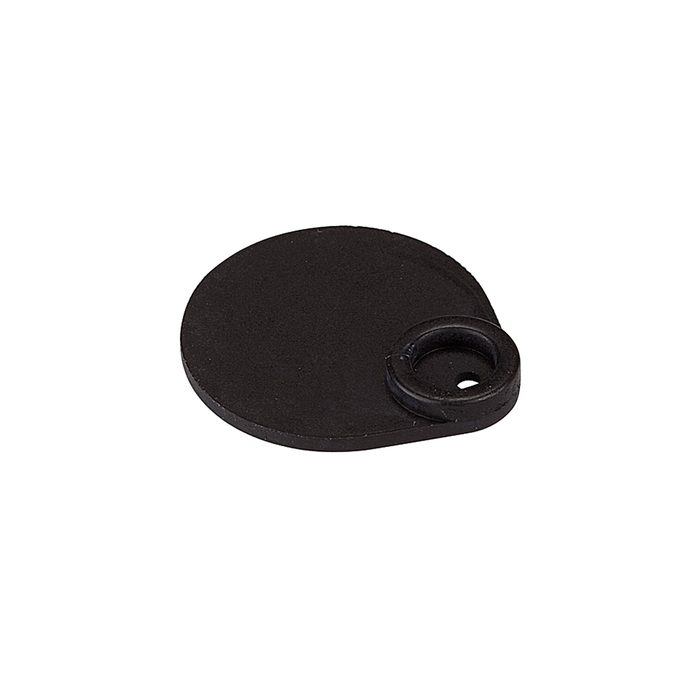

![[100281] RIEGLER Shaped seal for flange pressure switch](/web/image/product.template/139716/image_128/%5B100281%5D%20RIEGLER%20Shaped%20seal%20for%20flange%20pressure%20switch?unique=23dbe48)
|
Type number: 22.DS9410.4 |
4.05 € | |

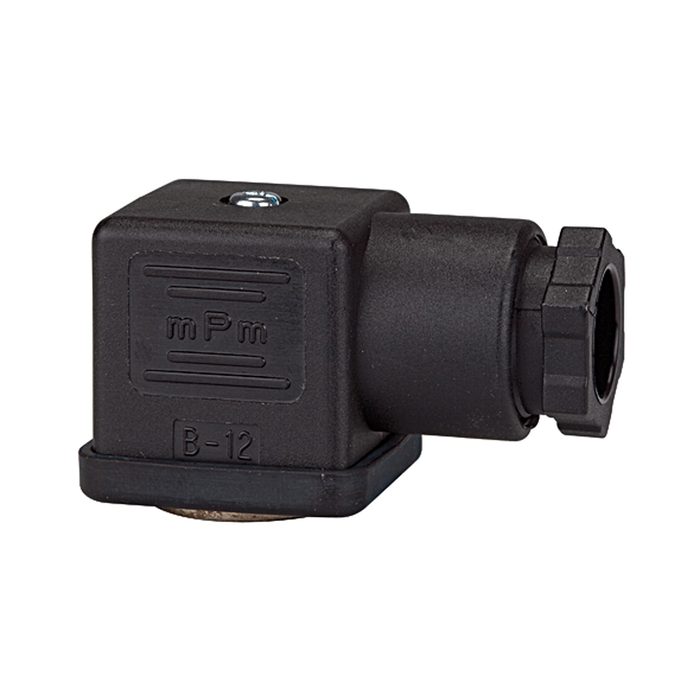

![[100282] RIEGLER Equipment plug for pressure switch, acc. to DIN EN 175301-803 A](/web/image/product.template/139717/image_128/%5B100282%5D%20RIEGLER%20Equipment%20plug%20for%20pressure%20switch%2C%20acc.%20to%20DIN%20EN%20175301-803%20A?unique=3f9107c)
|
