RIEGLER Sintered bronze silencer, Slot, G 1
Type number: 568-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sintered bronze silencer for noise protection, max. 8 bar, G 1 - Type 568-6
The RIEGLER sintered bronze silencer, slot, G 1, 0 - 8 bar significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of sintered bronze. The operating pressure range is 0 bar to 8 bar. The operating temperature is between -10 °C and 250 °C. G 1 connection thread - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Material | Sintered bronze |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Noise level at 6 bar | 71-108 dB |
| Thread | G 1 |
| A | 15 mm |
| B | 75 mm |
| C | 26.5 mm |
| Execution | with slot |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113350] RIEGLER Sintered bronze silencer, Slot, G 1/2](/web/image/product.template/186251/image_128/%5B113350%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-2?unique=795b698)
|
Type number: 568-4 |
6.32 € | |
![[100405] RIEGLER Sintered bronze silencer, Slot, G 1/4](/web/image/product.template/139839/image_128/%5B100405%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-4?unique=9c23375)
|
Type number: 568-2 |
1.54 € | |
![[113348] RIEGLER Sintered bronze silencer, Slot, G 1/8](/web/image/product.template/186249/image_128/%5B113348%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-8?unique=57978f2)
|
Type number: 568-1 |
1.09 € | |

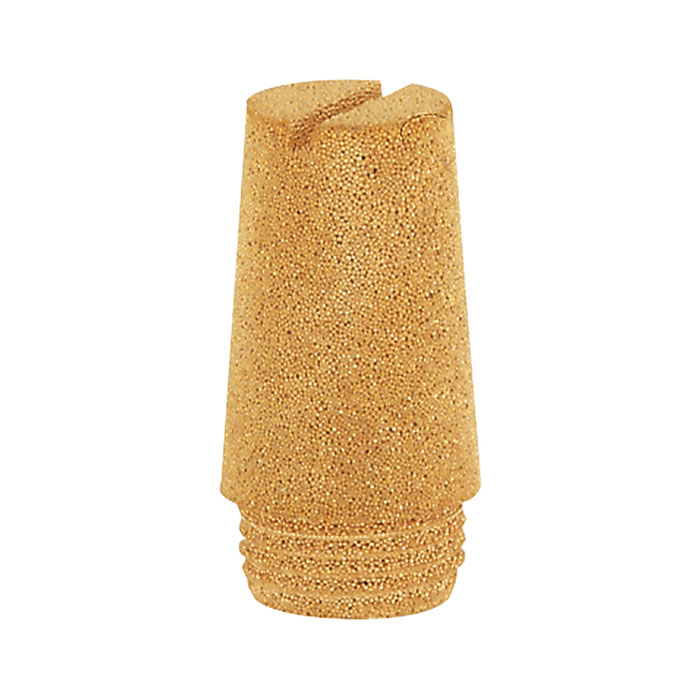

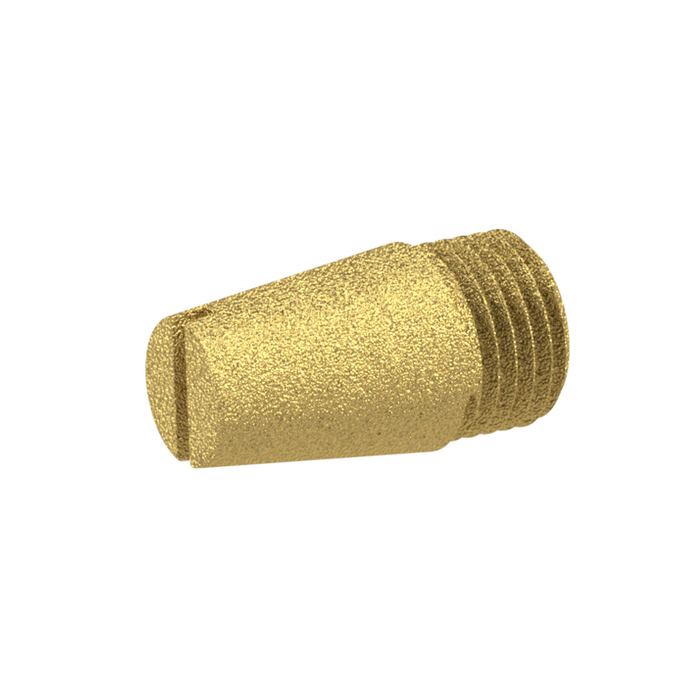

![[113351] RIEGLER Sintered bronze silencer, Slot, G 3/4](/web/image/product.template/186252/image_128/%5B113351%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%203-4?unique=29ef103)
|
