RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 3, G 1/2
Type number: L 33 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "multifix" made of die-cast zinc, for compressed air treatment, G 1/2 - type L 33 S
The RIEGLER mist lubricator "multifix", with PC container and protective cage, BG 3, G 1/2 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 5000 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Polycarbonate tank with protective cage. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 5000 l/min |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 198.6 mm |
| C | 66.1 mm |
| D | 132.5 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100556] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 1/4](/web/image/product.template/139991/image_128/%5B100556%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%201-4?unique=a955b08)
|
Type number: L 11 S |
40.64 € | |
![[100557] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 3/8](/web/image/product.template/139992/image_128/%5B100557%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%203-8?unique=a4929f9)
|
Type number: L 12 S |
40.64 € | |
![[100559] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 3, G 3/4](/web/image/product.template/139994/image_128/%5B100559%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%203%2C%20G%203-4?unique=0d31618)
|
Type number: L 34 S |
60.40 € | |

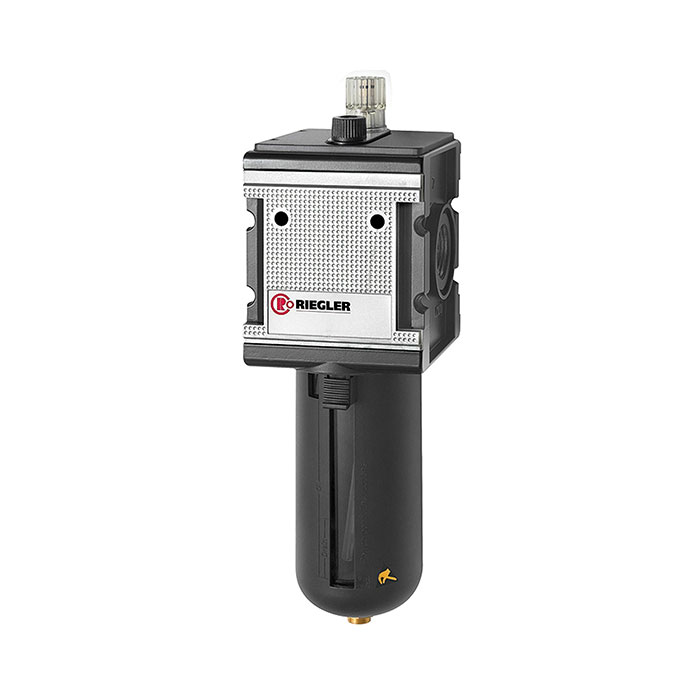

![[133120] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 4, G 1](/web/image/product.template/202770/image_128/%5B133120%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%204%2C%20G%201?unique=4f5d6c7)
|
Type number: L 45 S |
107.53 € | |
![[133119] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 4, G 3/4](/web/image/product.template/202769/image_128/%5B133119%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%204%2C%20G%203-4?unique=c273e95)
|
Type number: L 44 S |
107.53 € | |

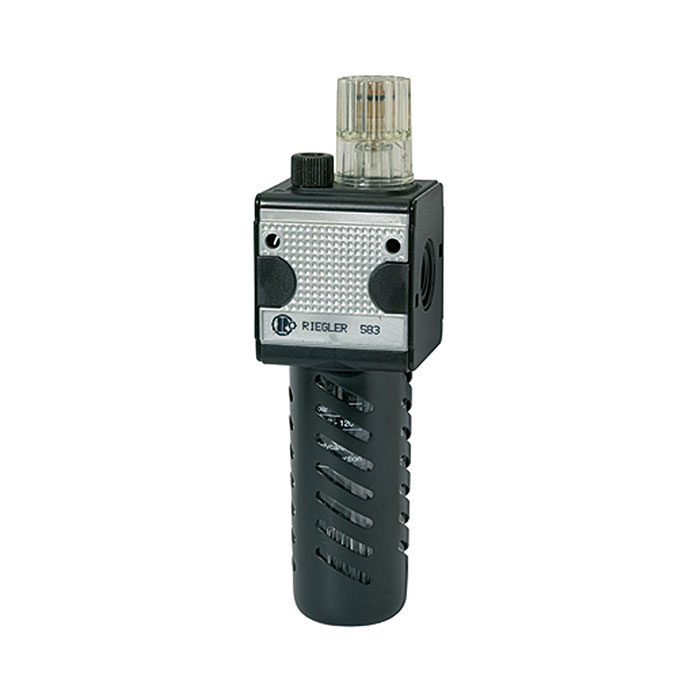

![[100560] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 5, G 1](/web/image/product.template/139995/image_128/%5B100560%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%205%2C%20G%201?unique=22b73f7)
|
