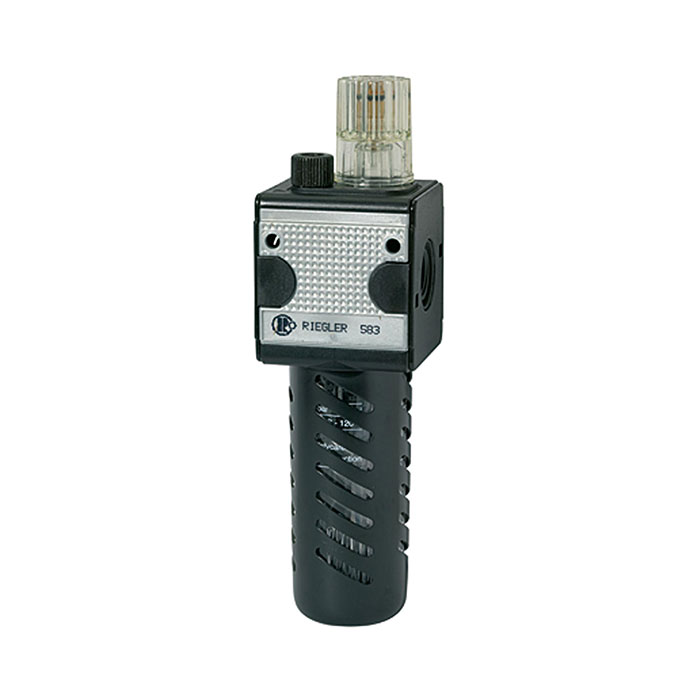

RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 3, G 3/4
Type number: L 34 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "multifix" made of die-cast zinc, for compressed air treatment, G 3/4 - type L 34 S
The RIEGLER mist lubricator "multifix", with PC container and protective cage, BG 3, G 3/4 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 5000 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Polycarbonate tank with protective cage. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 5000 l/min |
| DN | 20 |
| BG | 3 |
| A | 68.8 mm |
| B | 198.6 mm |
| C | 66.1 mm |
| D | 132.5 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100556] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 1/4](/web/image/product.template/139991/image_128/%5B100556%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%201-4?unique=ce98cbe)
|
Type number: L 11 S |
40.64 € | |
![[100557] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 3/8](/web/image/product.template/139992/image_128/%5B100557%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%203-8?unique=be19d9f)
|
Type number: L 12 S |
40.64 € | |
![[100558] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 3, G 1/2](/web/image/product.template/139993/image_128/%5B100558%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%203%2C%20G%201-2?unique=8e8c2cd)
|
Type number: L 33 S |
60.40 € | |
![[133120] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 4, G 1](/web/image/product.template/202770/image_128/%5B133120%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%204%2C%20G%201?unique=4486048)
|
Type number: L 45 S |
107.53 € | |
![[133119] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 4, G 3/4](/web/image/product.template/202769/image_128/%5B133119%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%204%2C%20G%203-4?unique=3eb6030)
|
Type number: L 44 S |
107.53 € | |
![[100560] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 5, G 1](/web/image/product.template/139995/image_128/%5B100560%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%205%2C%20G%201?unique=7e98416)
|
Type number: L 55 S |
146.10 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=36a168c)
|
Type number: 32 |
34.09 € | |
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=2eb5a13)
|
Type number: 1233.7.909 |
18.71 € | |

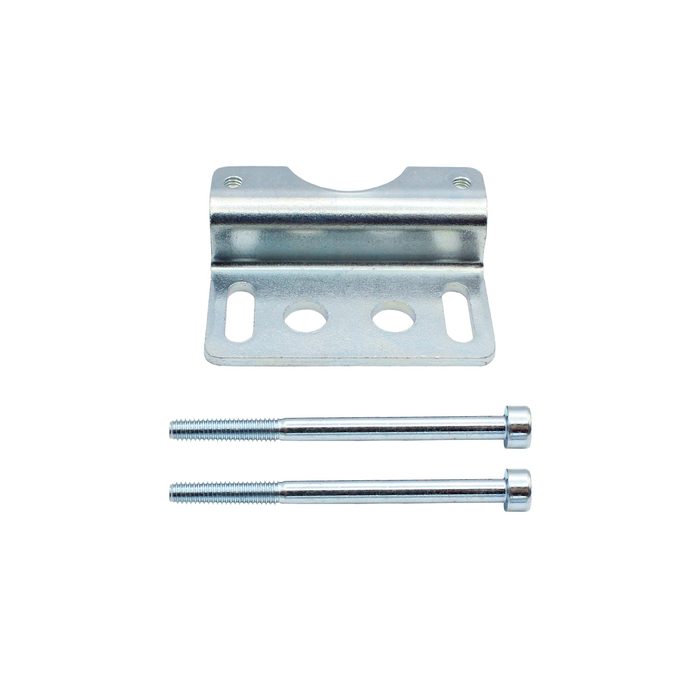

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=36eda32)
|
Type number: ZW 33 |
5.00 € | |

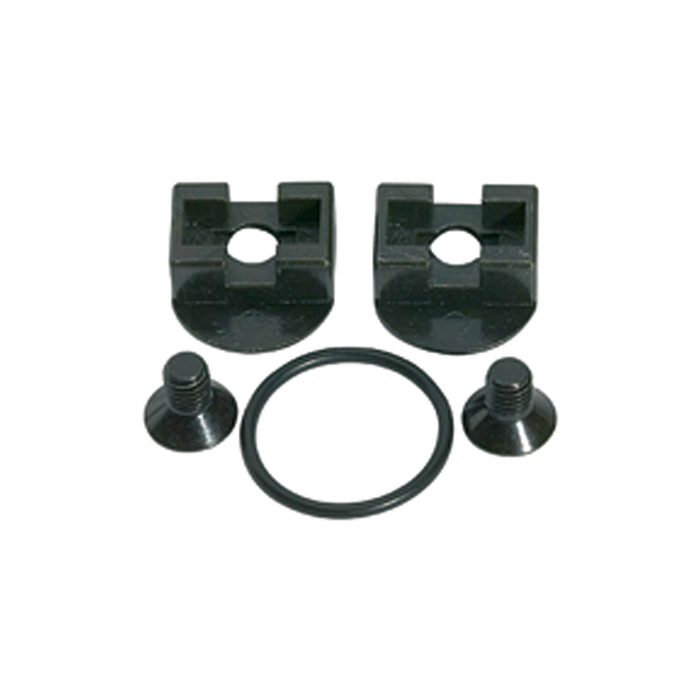

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=570520e)
|
Type number: KP 33 |
2.01 € | |

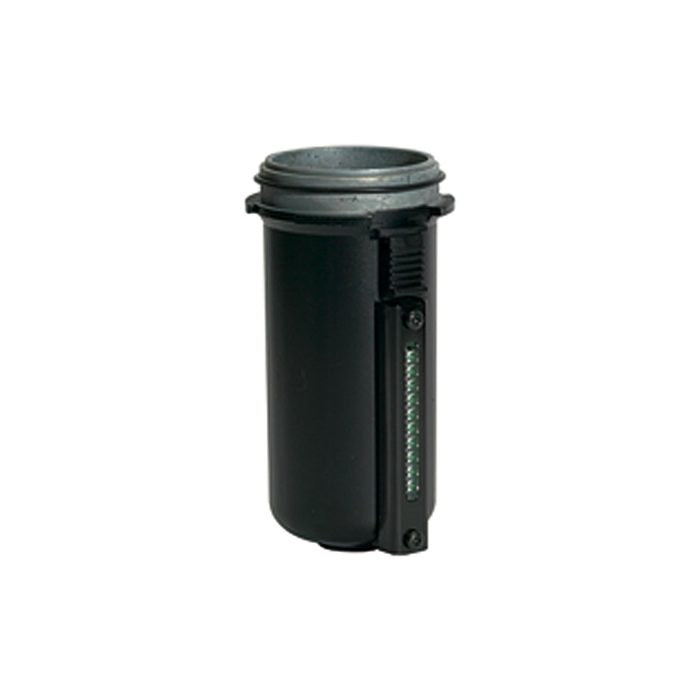

![[100549] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139984/image_128/%5B100549%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=934a2eb)
|
Type number: MS 33 NS |
32.64 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=867c282)
|
Type number: 1233.7.990 |
9.48 € | |

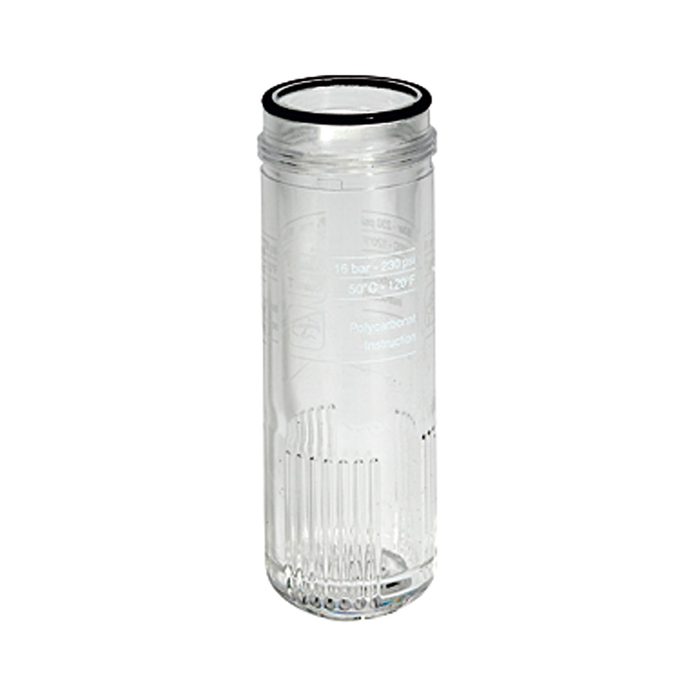

![[100548] RIEGLER Polycarbonate container, incl. O-ring, for »multifix«, Size 3+5](/web/image/product.template/139983/image_128/%5B100548%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2B5?unique=72b3928)
|
