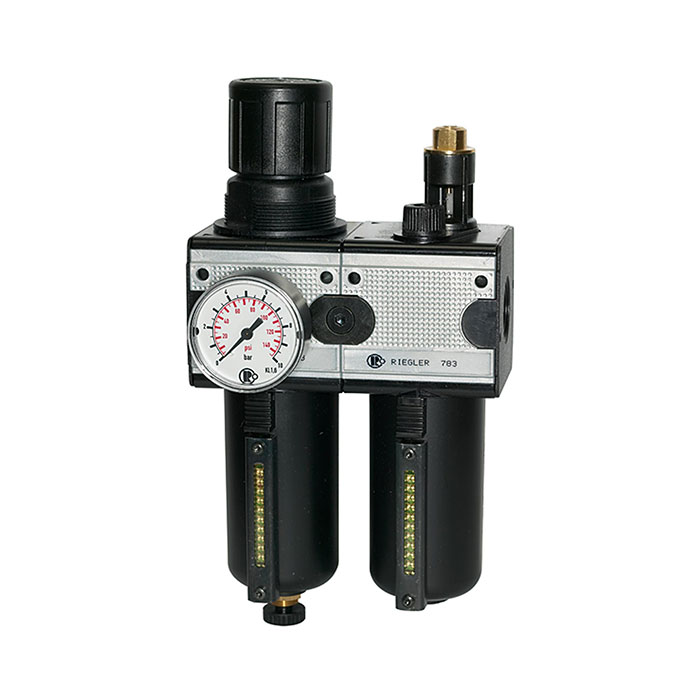

RIEGLER Service unit 2-part »multifix«, Metal container, Size 1, G 1/4
Type number: CL 11 M-SR
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Service unit 2-part »multifix«, Metal container, Viewing tube, Size 1, G 1/4, Input pressure max. 20 bar, Control range 0.5-10 bar
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/4 |
| Flow rate | 1200 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 6 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 92.8 mm |
| B | 192.5 mm |
| C | 67 mm |
| D | 125.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100577] RIEGLER Service unit 2-part »multifix«, Metal container, Size 1, G 3/8](/web/image/product.template/140012/image_128/%5B100577%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=642f91b)
|
Type number: CL 12 M-SR |
120.70 € | |
![[100578] RIEGLER Service unit 2-part »multifix«, Metal container, Size 3, G 1/2](/web/image/product.template/140013/image_128/%5B100578%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=3b9ddcd)
|
Type number: CL 33 M-SR |
162.32 € | |
![[100579] RIEGLER Service unit 2-part »multifix«, Metal container, Size 3, G 3/4](/web/image/product.template/140014/image_128/%5B100579%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=c06c779)
|
Type number: CL 34 M-SR |
163.53 € | |
![[133126] RIEGLER Service unit 2-part »multifix«, Metal container, Size 4, G 1](/web/image/product.template/202776/image_128/%5B133126%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201?unique=3fa4d0b)
|
Type number: CL 45 M-SR-10 |
360.42 € | |

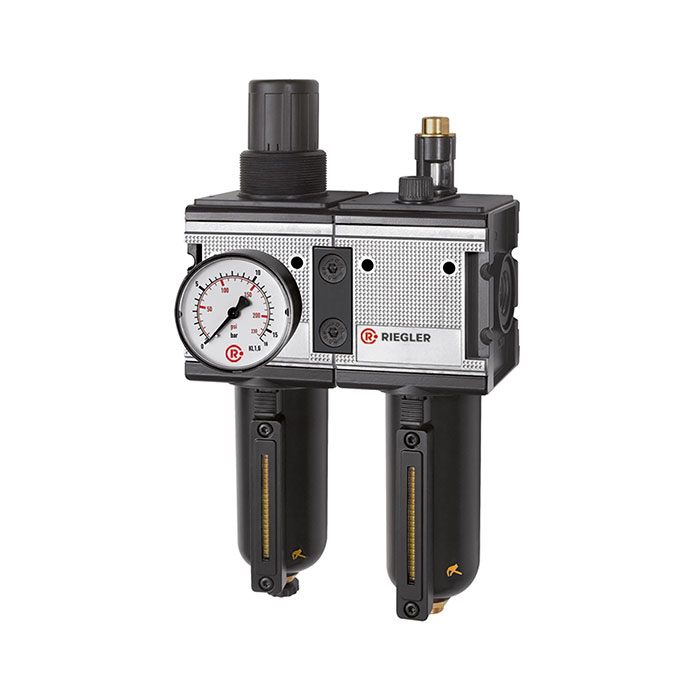

![[133125] RIEGLER Service unit 2-part »multifix«, Metal container, Size 4, G 3/4](/web/image/product.template/202775/image_128/%5B133125%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%203-4?unique=fcfc597)
|
