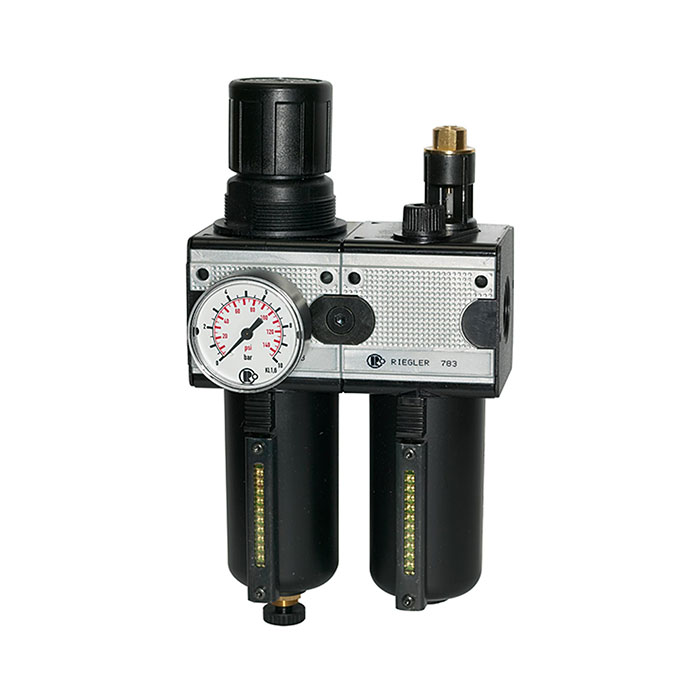

RIEGLER Service unit 2-part »multifix«, Metal container, Size 1, G 3/8
Type number: CL 12 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungseinheit 2-tlg. »multifix«, Metallbehälter und Sichtrohr, BG 1, G 3/8, Eingangsdruck max. 20 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 3/8 |
| Flow rate | 1200 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 10 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 92.8 mm |
| B | 192.5 mm |
| C | 67 mm |
| D | 125.5 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100576] RIEGLER Service unit 2-part »multifix«, Metal container, Size 1, G 1/4](/web/image/product.template/140011/image_128/%5B100576%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=b766368)
|
Type number: CL 11 M-SR |
120.01 € | |
![[100578] RIEGLER Service unit 2-part »multifix«, Metal container, Size 3, G 1/2](/web/image/product.template/140013/image_128/%5B100578%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=c1488ff)
|
Type number: CL 33 M-SR |
162.32 € | |
![[100579] RIEGLER Service unit 2-part »multifix«, Metal container, Size 3, G 3/4](/web/image/product.template/140014/image_128/%5B100579%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=4bc7da4)
|
Type number: CL 34 M-SR |
160.85 € | |
![[133126] RIEGLER Service unit 2-part »multifix«, Metal container, Size 4, G 1](/web/image/product.template/202776/image_128/%5B133126%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201?unique=7c5999f)
|
Type number: CL 45 M-SR-10 |
354.51 € | |

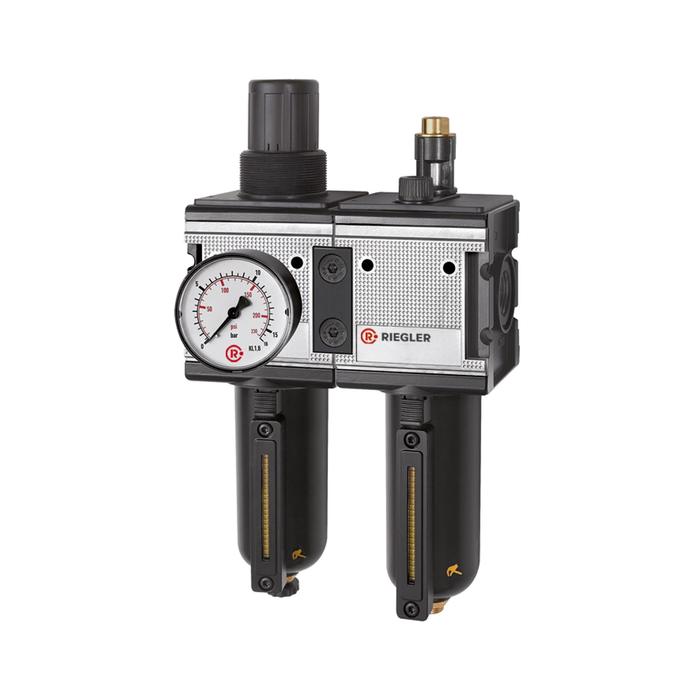

![[133125] RIEGLER Service unit 2-part »multifix«, Metal container, Size 4, G 3/4](/web/image/product.template/202775/image_128/%5B133125%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%203-4?unique=c849ad5)
|
Type number: CL 44 M-SR-10 |
354.51 € | |

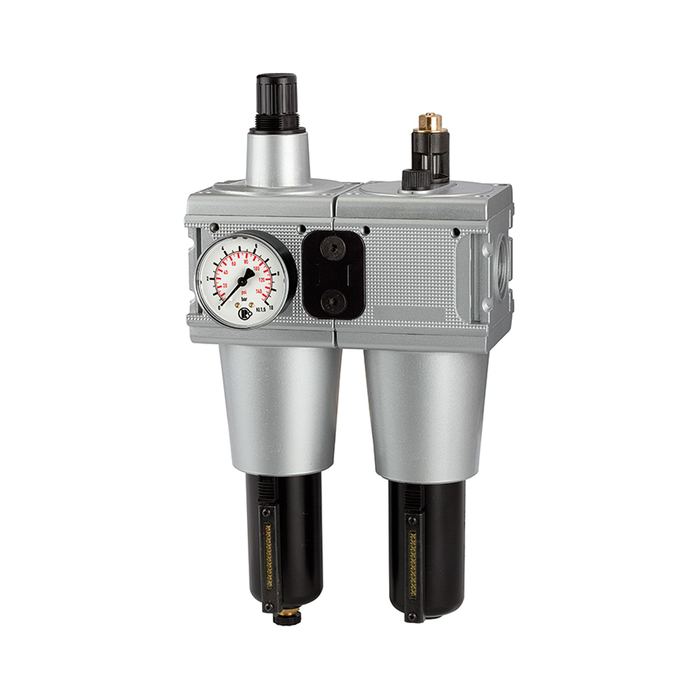

![[100580] RIEGLER Service unit 2-part »multifix«, Metal container, Size 5, G 1](/web/image/product.template/140015/image_128/%5B100580%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix%C2%AB%2C%20Metal%20container%2C%20Size%205%2C%20G%201?unique=a6ffd14)
|
Type number: CL 55 M-SR |
428.96 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=d4cbd22)
|
Type number: 1233.7.909 |
18.71 € | |

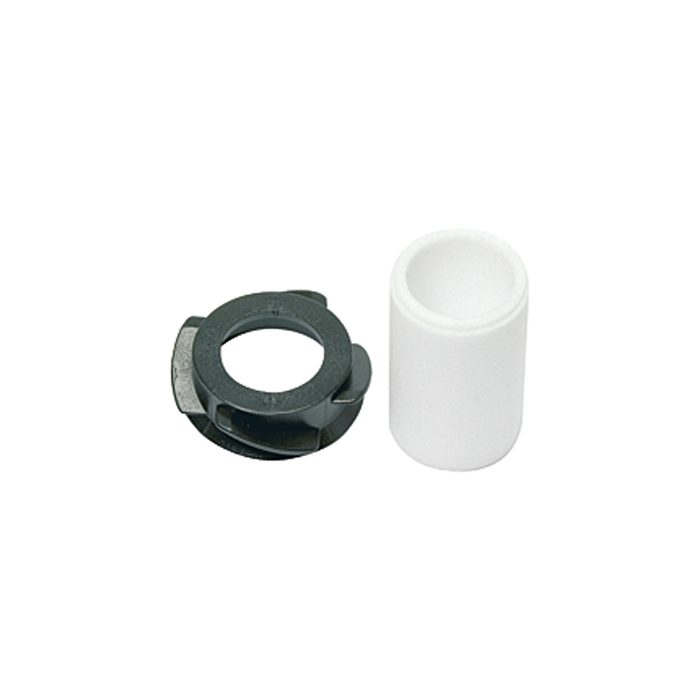

![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=880b63d)
|
Type number: 611.6.905 |
9.46 € | |

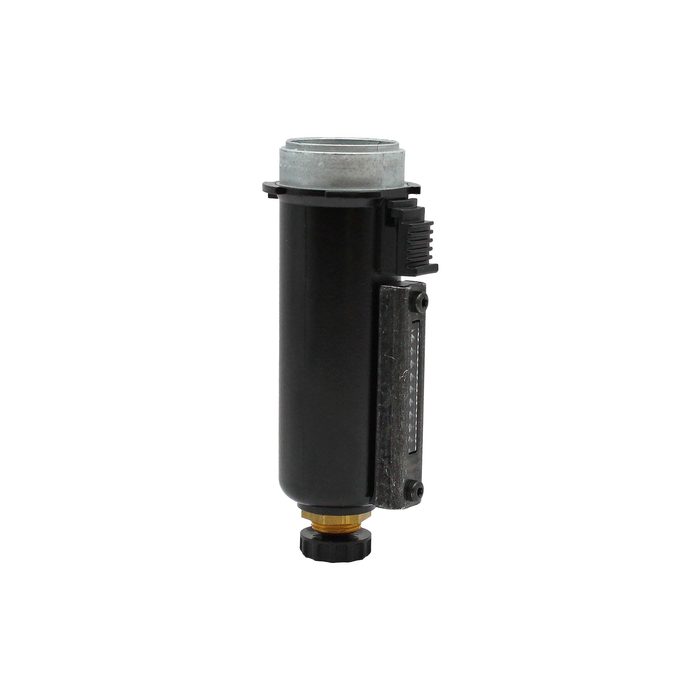

![[100498] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139933/image_128/%5B100498%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=5cea6c9)
|
Type number: MS 11 FS |
27.48 € | |

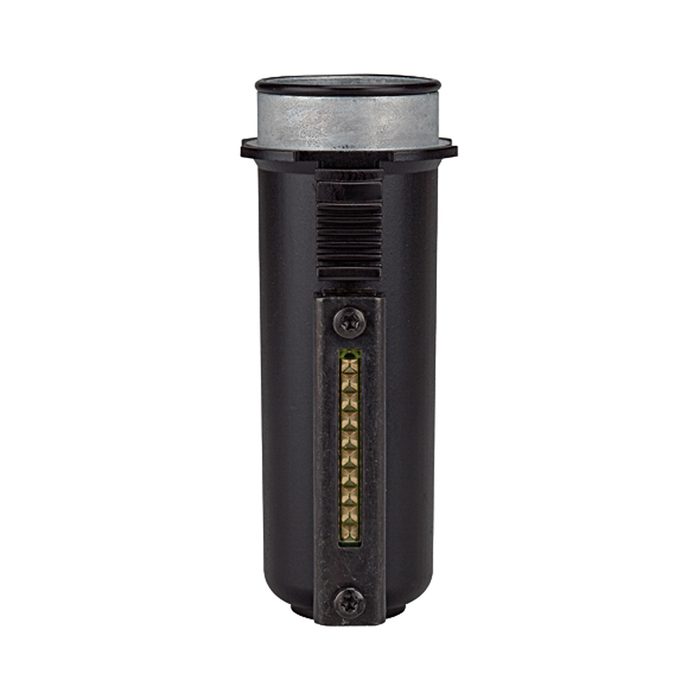

![[100547] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139982/image_128/%5B100547%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=b3cab9c)
|
Type number: MS 11 NS |
26.10 € | |
![[116901] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 16.0 bar/230 psi, Ø40](/web/image/product.template/274706/image_128/%5B116901%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2016.0%20bar-230%20psi%2C%20%C3%9840?unique=a9d368c)
|
Type number: 110.04-KD |
5.77 € | |

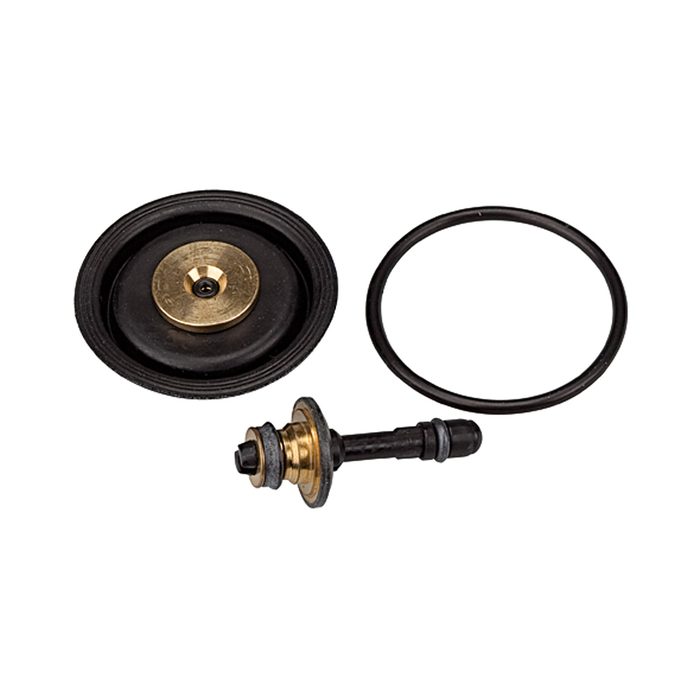

![[100438] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 30x2](/web/image/product.template/139872/image_128/%5B100438%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2030x2?unique=73324b5)
|
Type number: 22.1811.4 |
24.32 € | |
