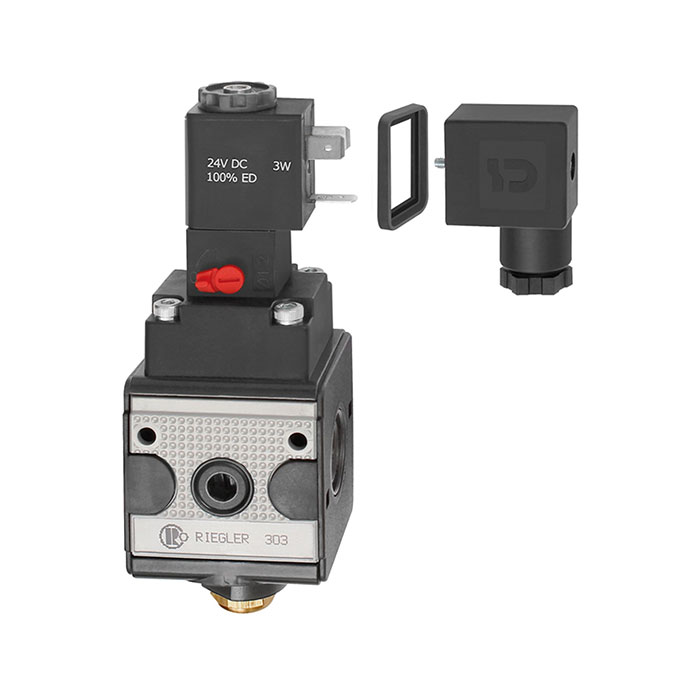

RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 1, G 1/4
Type number: S 11-4
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Switching valve (3/2-way valve) "multifix", 24 V DC, BG 1, G 1/4, inlet pressure 2 - 10 bar, med. ambient temp. max. 60 °C
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 10 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Duty cycle | 1 |
| Protection class | IP 65 (P 54) according to DIN 40050 |
| Electrical connection | Cable plug PG 9, form B, EN 175301-803 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 1150 l/min |
| Solenoid coil | 24 V DC |
| BG | 1 |
| A | 47.8 mm |
| B | 138.7 mm |
| C | 43.7 mm |
| D | 26 mm |
| E | 17.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 1/4 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100619] RIEGLER Switch valve (3/2-way valve) »multifix«, 110 V AC, Size 1, G 1/4](/web/image/product.template/140054/image_128/%5B100619%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20110%20V%20AC%2C%20Size%201%2C%20G%201-4?unique=9db6ec7)
|
Type number: S 11-3 |
101.83 € | |
![[100623] RIEGLER Switch valve (3/2-way valve) »multifix«, 110 V AC, Size 3, G 1/2](/web/image/product.template/140058/image_128/%5B100623%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20110%20V%20AC%2C%20Size%203%2C%20G%201-2?unique=def9013)
|
Type number: S 33-3 |
122.84 € | |
![[133141] RIEGLER Switch valve (3/2-way valve) »multifix«, 110 V AC, Size 4, G 1](/web/image/product.template/202791/image_128/%5B133141%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20110%20V%20AC%2C%20Size%204%2C%20G%201?unique=c94cabe)
|
Type number: S 45-3 |
197.78 € | |
![[133137] RIEGLER Switch valve (3/2-way valve) »multifix«, 110 V AC, Size 4, G 3/4](/web/image/product.template/202787/image_128/%5B133137%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20110%20V%20AC%2C%20Size%204%2C%20G%203-4?unique=49b7aa3)
|
Type number: S 44-3 |
197.78 € | |
![[100618] RIEGLER Switch valve (3/2-way valve) »multifix«, 230 V AC, Size 1, G 1/4](/web/image/product.template/140053/image_128/%5B100618%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20230%20V%20AC%2C%20Size%201%2C%20G%201-4?unique=c44df66)
|
Type number: S 11-2 |
101.83 € | |
![[100622] RIEGLER Switch valve (3/2-way valve) »multifix«, 230 V AC, Size 3, G 1/2](/web/image/product.template/140057/image_128/%5B100622%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20230%20V%20AC%2C%20Size%203%2C%20G%201-2?unique=32a673e)
|
Type number: S 33-2 |
122.84 € | |
![[133140] RIEGLER Switch valve (3/2-way valve) »multifix«, 230 V AC, Size 4, G 1](/web/image/product.template/202790/image_128/%5B133140%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20230%20V%20AC%2C%20Size%204%2C%20G%201?unique=8953830)
|
Type number: S 45-2 |
197.78 € | |
![[133136] RIEGLER Switch valve (3/2-way valve) »multifix«, 230 V AC, Size 4, G 3/4](/web/image/product.template/202786/image_128/%5B133136%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20230%20V%20AC%2C%20Size%204%2C%20G%203-4?unique=d097919)
|
Type number: S 44-2 |
197.78 € | |
![[100617] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V AC, Size 1, G 1/4](/web/image/product.template/140052/image_128/%5B100617%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20AC%2C%20Size%201%2C%20G%201-4?unique=0192428)
|
Type number: S 11-1 |
101.83 € | |
![[100621] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V AC, Size 3, G 1/2](/web/image/product.template/140056/image_128/%5B100621%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20AC%2C%20Size%203%2C%20G%201-2?unique=827d5cf)
|
Type number: S 33-1 |
122.84 € | |
![[133135] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V AC, Size 4, G 3/4](/web/image/product.template/202785/image_128/%5B133135%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20AC%2C%20Size%204%2C%20G%203-4?unique=686d9ef)
|
Type number: S 44-1 |
183.81 € | |
![[100624] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 3, G 1/2](/web/image/product.template/140059/image_128/%5B100624%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20DC%2C%20Size%203%2C%20G%201-2?unique=e20cf4c)
|
Type number: S 33-4 |
122.84 € | |
![[133142] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 4, G 1](/web/image/product.template/202792/image_128/%5B133142%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20DC%2C%20Size%204%2C%20G%201?unique=2c18427)
|
Type number: S 45-4 |
197.78 € | |
![[133138] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 4, G 3/4](/web/image/product.template/202788/image_128/%5B133138%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20DC%2C%20Size%204%2C%20G%203-4?unique=97b2b5b)
|
Type number: S 44-4 |
197.78 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=ade9e9d)
|
Type number: 567-2/M |
3.13 € | |

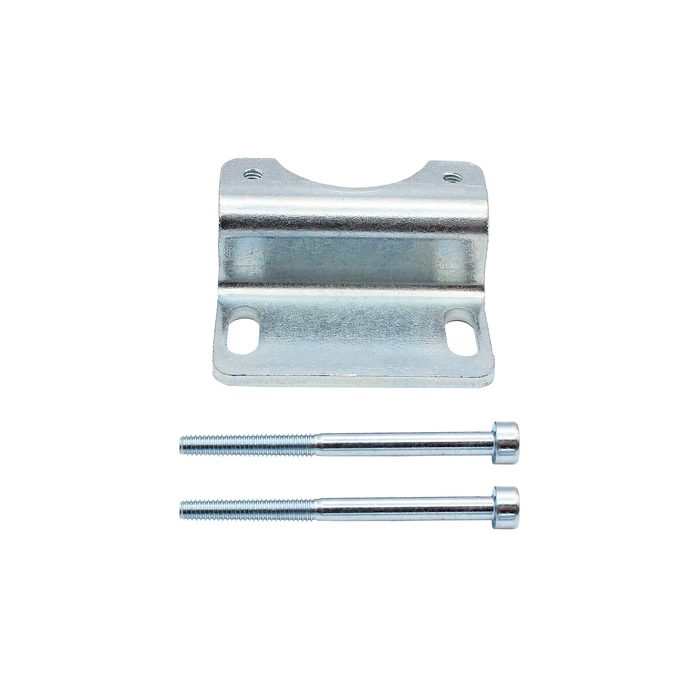

![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=35088cf)
|
Type number: ZW 11 |
3.63 € | |

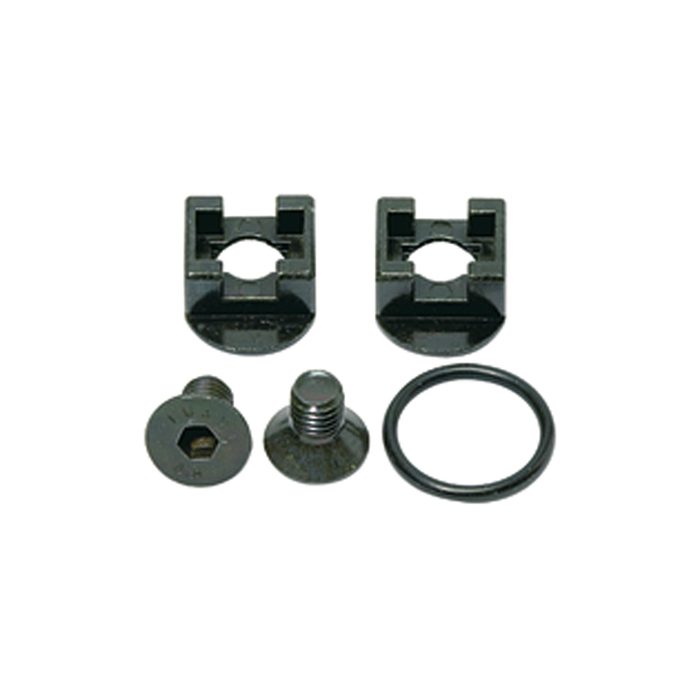

![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=e45fd77)
|
Type number: KP 11 |
2.00 € | |

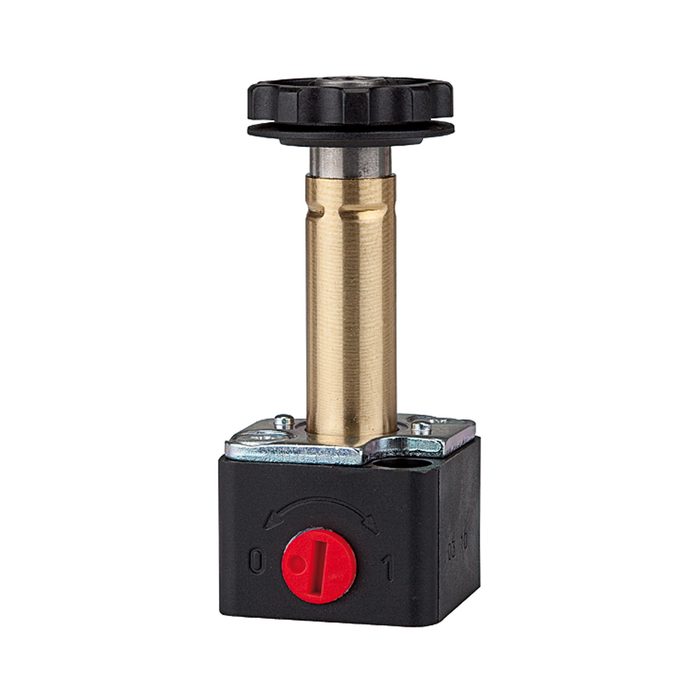

![[100625] RIEGLER 3/2-way valve for pre-control with manual actuation](/web/image/product.template/140060/image_128/%5B100625%5D%20RIEGLER%203-2-way%20valve%20for%20pre-control%20with%20manual%20actuation?unique=dbeebd5)
|
Type number: S 11-38N |
45.18 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

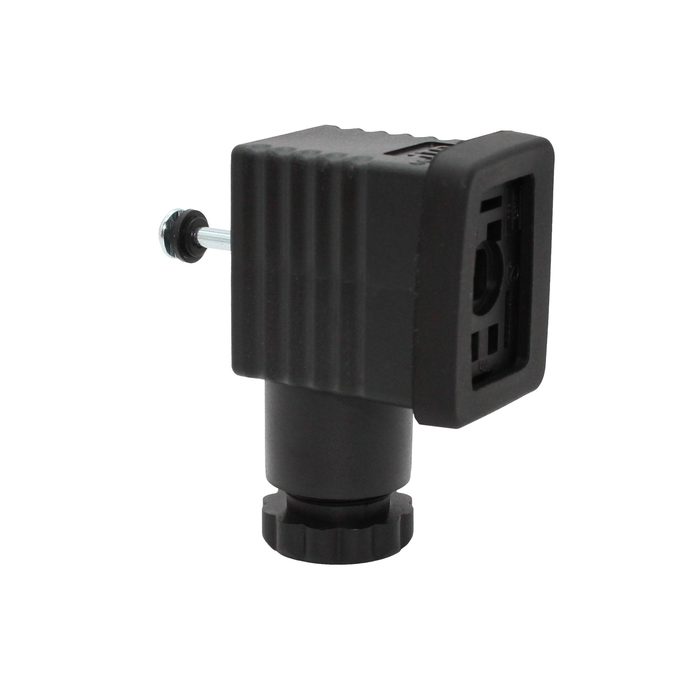

![[100409] RIEGLER Equipment plug B shape acc. to EN175301-803, Cable connection PG9](/web/image/product.template/139843/image_128/%5B100409%5D%20RIEGLER%20Equipment%20plug%20B%20shape%20acc.%20to%20EN175301-803%2C%20Cable%20connection%20PG9?unique=55a37bf)
|
