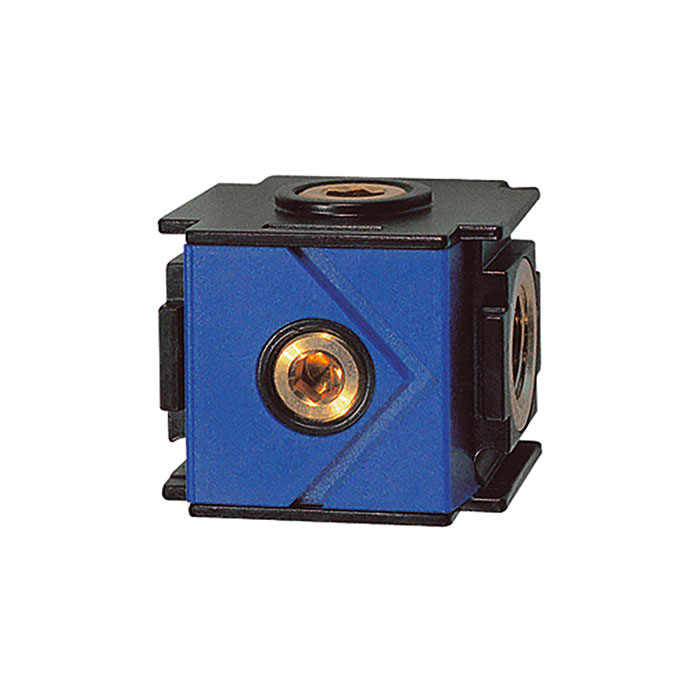

RIEGLER Distributor »variobloc«, Size 2, G 3/4, with 4 outlets
Type number: VV 25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Distributor "variobloc" for compressed air preparation, G 3/4 - type VV 25
The RIEGLER manifold "variobloc", BG 2, G 3/4, with 4 outlets expands maintenance systems modularly with additional functions. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 5000 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Number of departures | 4 (all sealed on delivery) |
| Thread | G 3/4 |
| Flow rate | 5000 l/min |
| BG | 2 |
| A | 70 mm |
| B | 56 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Top / bottom outlet | G 3/8 / G 1/2 |
| Outlet front / rear | G 1/4 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100722] RIEGLER Distributor »variobloc«, Size 1, G 1/4, with 4 outlets](/web/image/product.template/140158/image_128/%5B100722%5D%20RIEGLER%20Distributor%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20with%204%20outlets?unique=f910370)
|
Type number: VV 22 |
36.51 € | |
![[100723] RIEGLER Distributor »variobloc«, Size 1, G 3/8, with 4 outlets](/web/image/product.template/140159/image_128/%5B100723%5D%20RIEGLER%20Distributor%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%20with%204%20outlets?unique=18b367d)
|
Type number: VV 23 |
36.12 € | |
![[100724] RIEGLER Distributor »variobloc«, Size 2, G 1/2, with 4 outlets](/web/image/product.template/140160/image_128/%5B100724%5D%20RIEGLER%20Distributor%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20with%204%20outlets?unique=053a2b2)
|
Type number: VV 24 |
65.12 € | |
![[100726] RIEGLER Distributor »variobloc«, Size 2, G 1, with 4 outlets](/web/image/product.template/140162/image_128/%5B100726%5D%20RIEGLER%20Distributor%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%20with%204%20outlets?unique=372d044)
|
Type number: VV 26 |
105.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

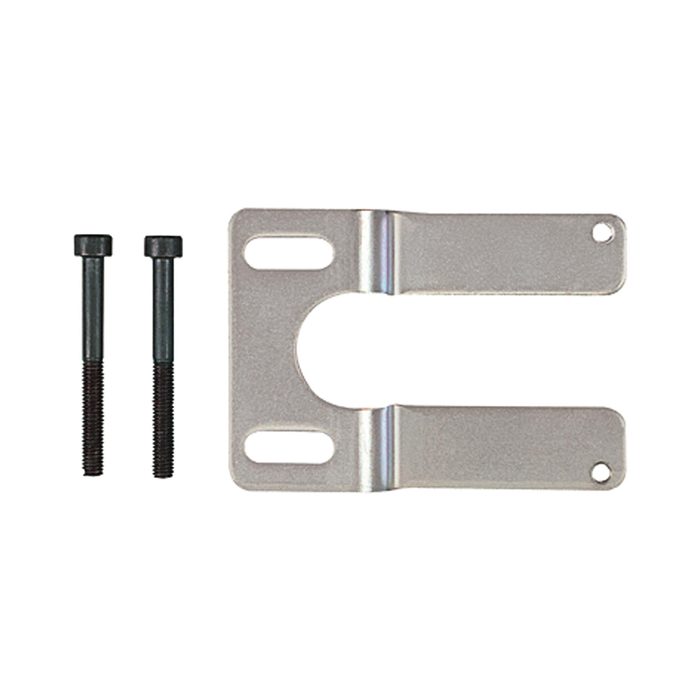

![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=880a819)
|
Type number: VZ 719 |
13.77 € | |

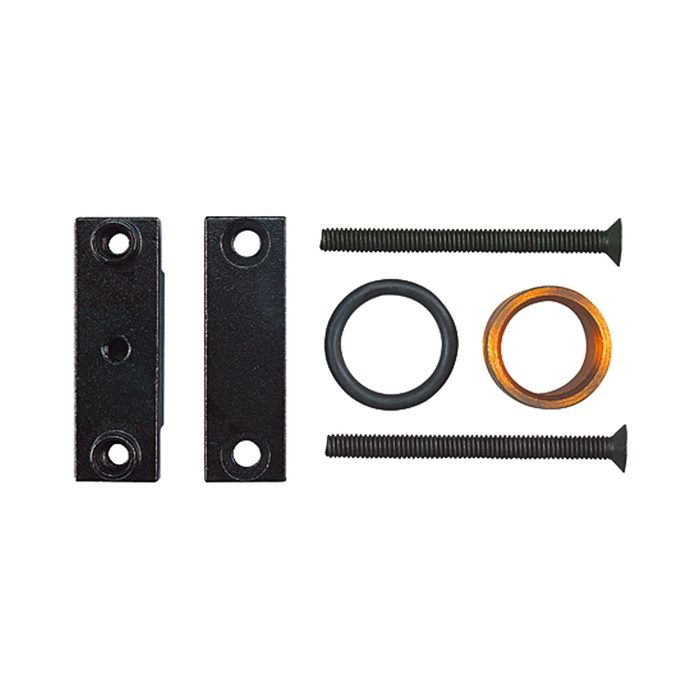

![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=7325b49)
|
Type number: VZ 104 |
13.99 € | |

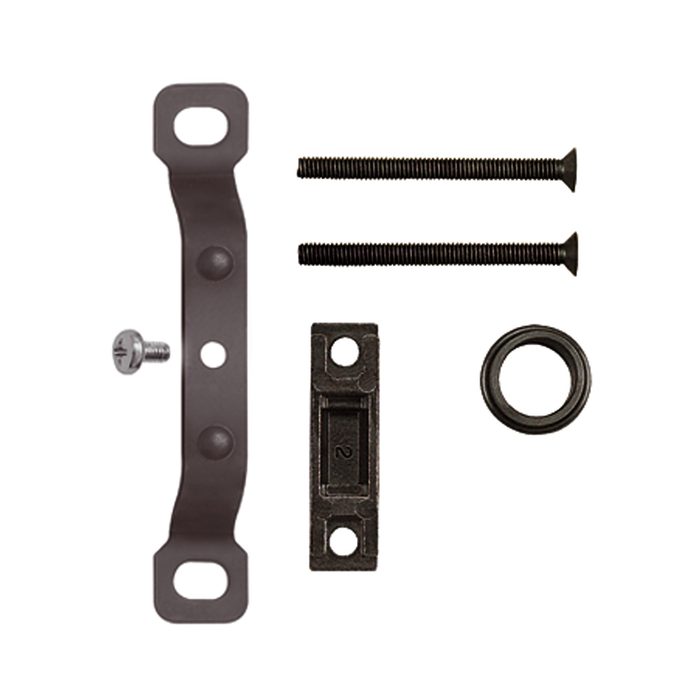

![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=5b3c8be)
|
Type number: VZ 204 |
23.10 € | |

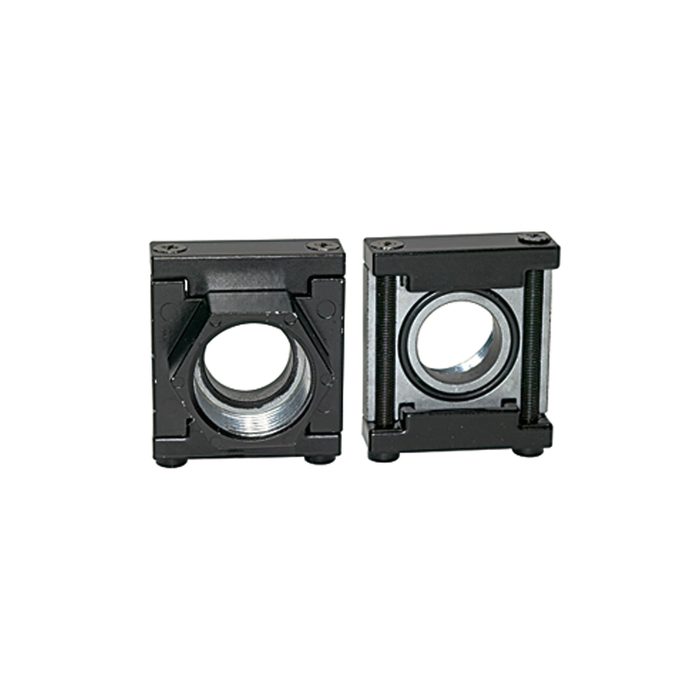

![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=dc8c377)
|
