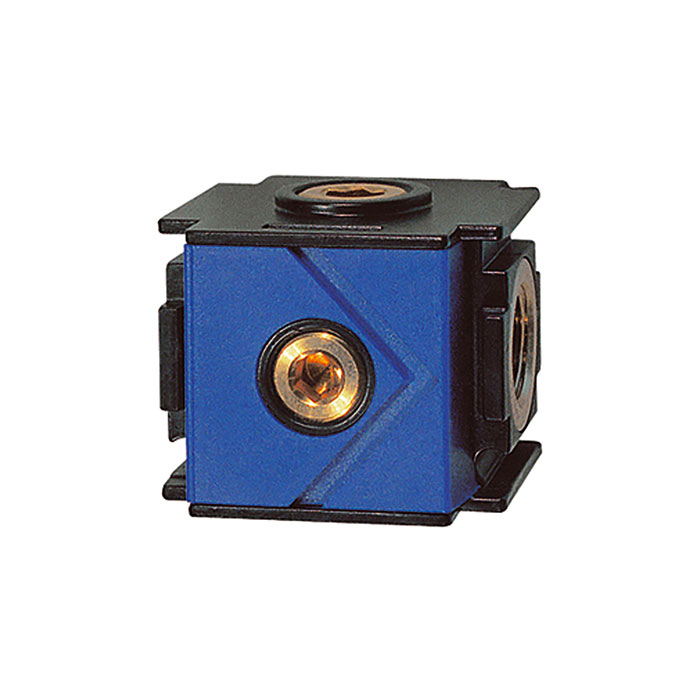

RIEGLER Distributor »variobloc«, Size 2, G 1, with 4 outlets
Type number: VV 26
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Distributor "variobloc" for compressed air preparation, G 1 - type VV 26
The RIEGLER manifold "variobloc", BG 2, G 1, with 4 outlets expands maintenance systems modularly with additional functions. Connection thread G 1 - suitable for common industry standards. The flow rate is 5000 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Number of departures | 4 (all sealed on delivery) |
| Thread | G 1 |
| Flow rate | 5000 l/min |
| BG | 2 |
| A | 124 mm |
| B | 56 mm |
| Top / bottom outlet | G 3/8 / G 1/2 |
| Outlet front / rear | G 1/4 |
| Class name | PLUS |
